SKU: M10X1-90-MS-KF

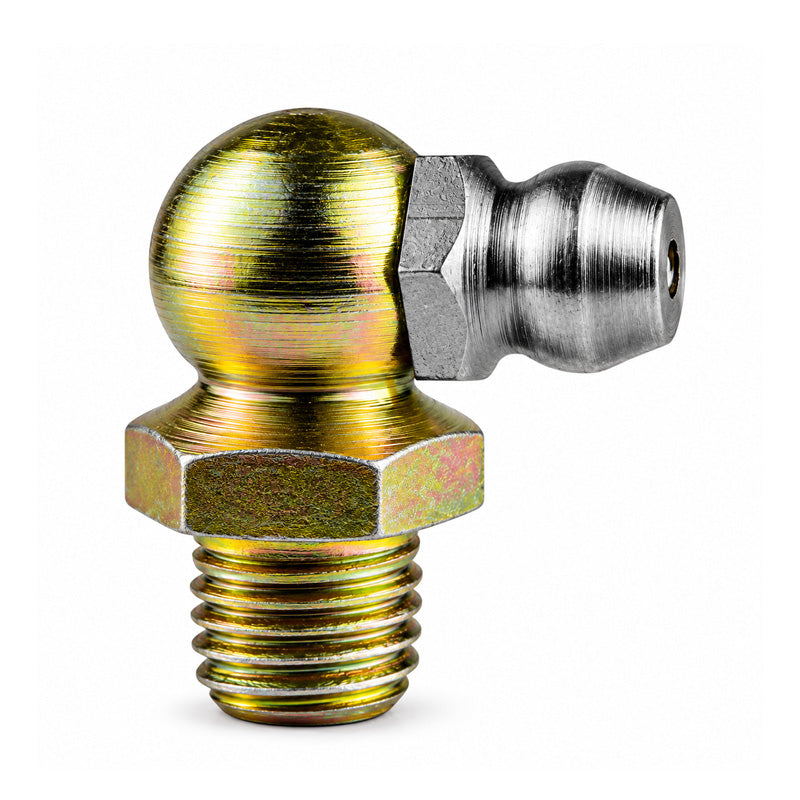

M10 X 1 Taper 90 Degrees Mild Steel Hydraulic Grease Nipples - Pack of 500
M10 X 1 Taper 90 Degrees Mild Steel Hydraulic Grease Nipples - Pack of 500
Regular price
€258,29
ex VAT
Regular price
Sale price
€258,29
ex VAT
In stock
Price Break
5+
€255,71
10+
€245,38
20+
€240,21
50+
€232,46
100+
€227,30
500+
€214,38
1000+
€180,80
Couldn't load pickup availability
Description
Description
Hydraulic Grease Nipple Fittings: Kingfisher superior hydraulic fittings are manufactured from a high quality mild steel and are case hardened to prevent wear on the head profile. The head is made with an annular groove in the plain portion. They are made with a unique mechanical joint for a leak-proof fit. Amongst our range of grease fittings there are fittings of different size, thread type and with or without angles.
Benefits: They share a number of essential qualities such as corrosion resistance and fitted with a ball check valve to prevent ingress of dirt.
Benefits: They share a number of essential qualities such as corrosion resistance and fitted with a ball check valve to prevent ingress of dirt.
- Brand / Quality:
- Kingfisher - High Quality
- Thread Size:
- M10X1
- Thread Length:
- 5.6mm = 0.22 inch
- Length:
- 19mm = 0.75 inch
- Angle:
- 90 deg
Technical
Technical
| --- | M10 Thread (Society of Automotive Engineers) |
|---|---|
| Recommended To Fit | M10X1 |
| Total Length A | 19mm = 0.75 inch |
| Thread Length B | 5.6mm = 0.22 inch |
| Swing Distance C | 12.8mm = 0.5 inch |
| Nipple Angle | 90 Deg |
| Required Tool Size (Hex Size) | 9mm |
