SKU: MB.1015.DLX

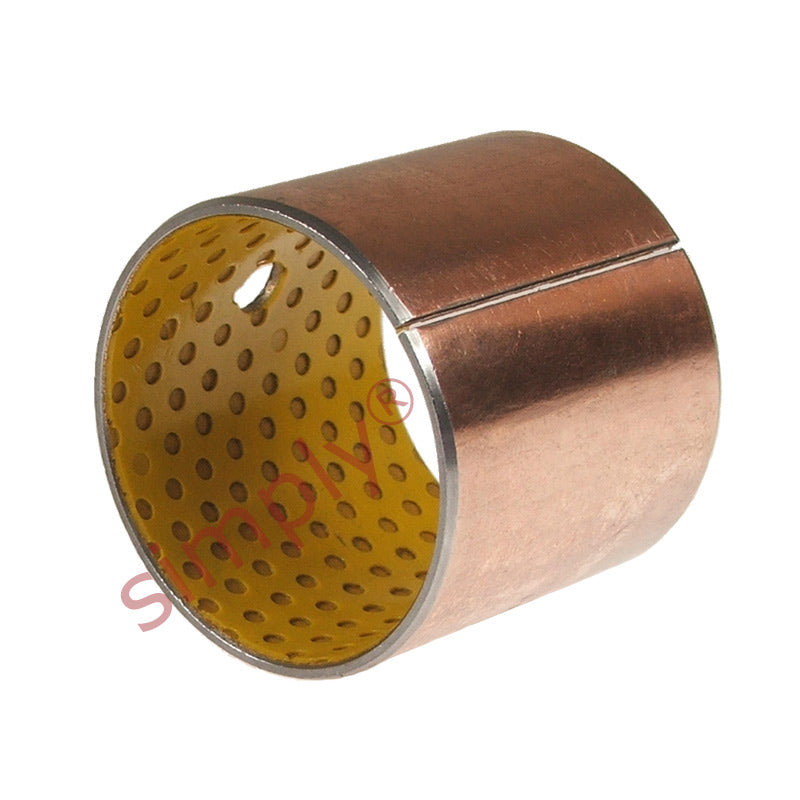

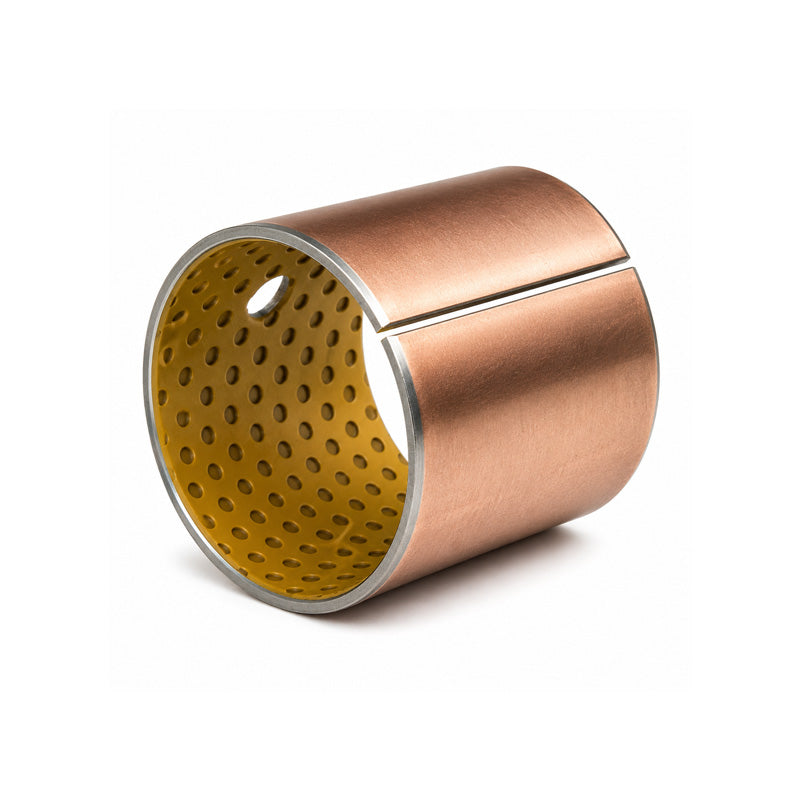

MB1015X Bronze Backed Steel Bush 10x12x15mm
MB1015X Bronze Backed Steel Bush 10x12x15mm
Regular price
€2,98
ex VAT
Regular price
Sale price
€2,98
ex VAT
Equivalent to: PAP1015P11
In stock
Price Break
10+
€2,65
19+
€2,50
29+
€2,47
39+
€2,44
49+
€2,41
74+
€2,38
99+
€2,24
199+
€2,21
249+
€2,18
499+
€2,15
999+
€2,09
Couldn't load pickup availability
Description
Description
|
Bronze Backed Plain Steel Bush: Made from a composite material developed specifically to operate with minimal lubrication. This bush bearing consists of three bonded layers - a steel backing strip and sintered porous bronze matrix, impregnated and overlaid with a pigmented acetal copolymer bearing material. The bearing surface is normally provided with a uniform pattern of indents which serve as a reservoir for grease and is designed to provide the optimum distribution of the lubricant over the bearing surface. |
Equivalent: PAP1015P11
- Brand / Quality:
- Simply Wrapped Steel Bushes - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 12mm
- Length:
- 15mm
Technical
Technical
| d | 10mm |
|---|---|
| D | 12mm |
| b | 15mm |
| Structure | Steel support strip S.A.E 1010. Sintered bronze layer. Co-Acetal polymer |
| Maximum static load | 140 N/mm<sup>2</sup> |
| Maximum dynamic load | 70 N/mm<sup>2</sup> |
| Maximum sliding speed | 2.5m/s with grease |
| Operating temperature | -40°C to +110° C |
| Intermittent maximum temperature | 130° C |
| Thermal conductivity | 2 W/mK |
| Coefficient of friction | 0.05 to 0.12 with grease |
| Recommended housing tolerance | H7 |
| Recommended shaft tolerance | h8 |
| Recommended shaft finish | HB > 200 |
| Recommended shaft hardness | HB > 200 |
