SKU: MFC1.7/16-RHP

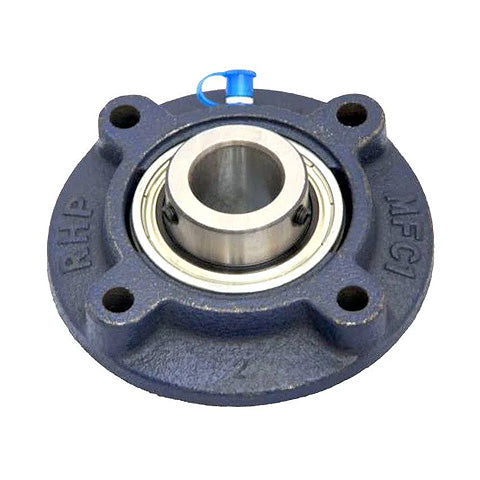

RHP MFC1-7/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 1-7/16 inch Insert
RHP MFC1-7/16 Four Bolt Round Cast Iron Flanged Bearing Unit and 1-7/16 inch Insert
Regular price
€113,97
ex VAT
Regular price
Sale price
€113,97
ex VAT
In stock
Price Break
10+
€101,43
19+
€95,73
29+
€94,60
39+
€93,46
49+
€92,32
74+
€91,18
99+
€85,48
199+
€84,34
249+
€83,20
499+
€82,06
999+
€79,78
Couldn't load pickup availability
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- MFC
- Pitch Circle Diameter:
- 111.13mm = 4.375 (4-3/8) inch
Technical
Technical
| Bore | 1-7/16 inch |
|---|---|
| L | 5.252 inch |
| H | 3.625 inch |
| J | 4.375 inch |
| G | 0.375 inch |
| A1 | 1.5 inch |
| A4 | 0.748 inch |
| A5 | 0.252 inch |
| B | 1.938 inch |
| s | 0.752 inch |
| d1 | 2.075 inch |
| Dynamic load | 32500 N |
| Static load | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-1-7/16G+insonly">1040-1-7/16G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
