SKU: MFC100-RHP

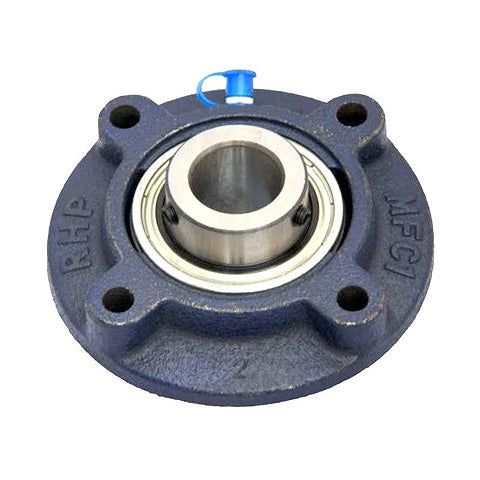

RHP MFC100 Four Bolt Round Cast Iron Flanged Bearing Unit and 100mm Insert
RHP MFC100 Four Bolt Round Cast Iron Flanged Bearing Unit and 100mm Insert
Regular price
€902,95
ex VAT
Regular price
Sale price
€902,95
ex VAT
In stock
Price Break
10+
€687,10
20+
€648,50
30+
€640,78
40+
€633,06
50+
€625,34
75+
€617,62
100+
€579,01
200+
€571,29
250+
€563,57
500+
€555,85
1000+
€540,41
Share this product
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 100mm
- Style:
- MFC
- Pitch Circle Diameter:
- 260.35mm
Technical
Technical

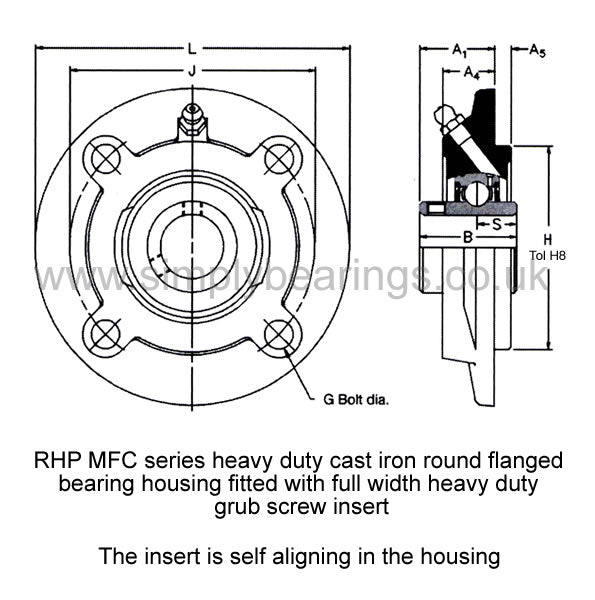

| Bore | 100mm |
|---|---|
| L | 298.4mm |
| H | 228.6mm |
| J | 260.35mm |
| G | 20mm |
| A1 | 88.9mm |
| A4 | 46mm |
| A5 | 12.7mm |
| B | 117.48mm |
| s | 49.27mm |
| d1 | 130.43mm |
| Dynamic load | 157000 N |
| Static load | 122000 N |
| Rec max speed | 1600 rpm |
| Weight | 17.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=3095-100G+insonly">3095-100G Click Here</a> |
| Casting group | 11 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
