SKU: MFC3.1/2-RHP

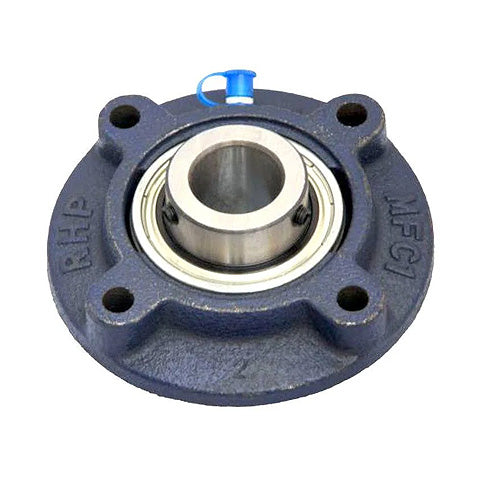

RHP MFC3-1/2 Four Bolt Round Cast Iron Flanged Bearing Unit and 3-1/2 inch Insert

RHP MFC3-1/2 Four Bolt Round Cast Iron Flanged Bearing Unit and 3-1/2 inch Insert
Regular price €621,95 ex VAT
Regular price Sale price €621,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €473,61
20+ €447,00
30+ €441,68
40+ €436,36
50+ €431,04
75+ €425,72
100+ €399,11
200+ €393,79
250+ €388,47
500+ €383,15
1000+ €372,50
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 3-1/2 inch
L 10.252 inch
H 7.375 inch
J 8.625 inch
G 0.75 inch
A1 2.656 inch
A4 1.157 inch
A5 0.5 inch
B 3.781 inch
s 1.564 inch
d1 4.396 inch
Dynamic load 96000 N
Static load 71500 N
Rec max speed 1900 rpm
Weight 9.8 kg
Insert <a href="advanced_search_result.php?keywords=1090-3-1/2G+insonly">1090-3-1/2G Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
