SKU: MSC1.15/16-RHP

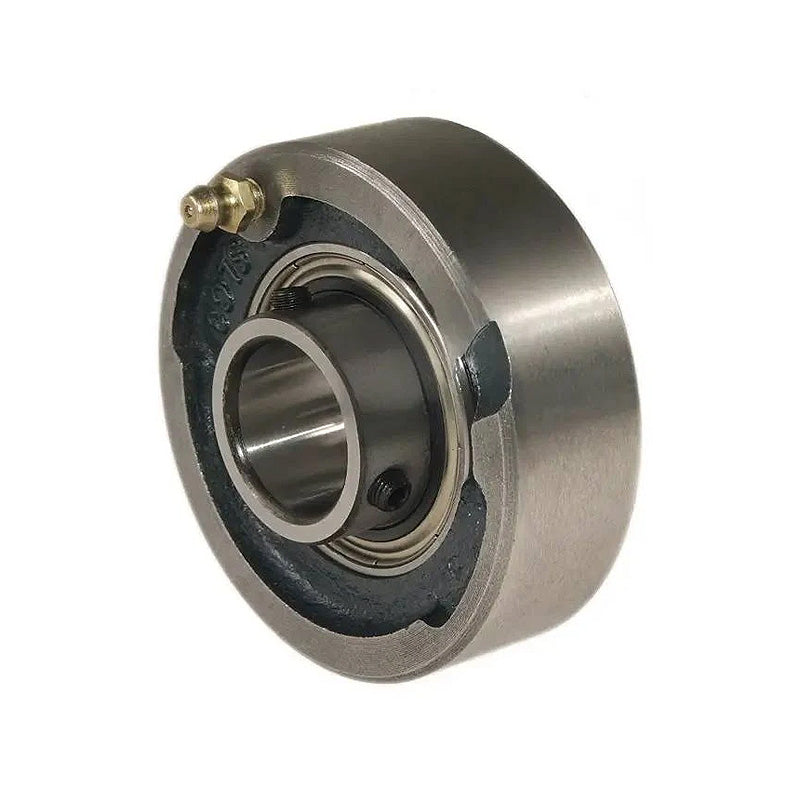

RHP MSC1-15/16 Cast Iron Cartridge Unit with 1-15/16 inch Bore Insert 125.44mm Outside Diameter
RHP MSC1-15/16 Cast Iron Cartridge Unit with 1-15/16 inch Bore Insert 125.44mm Outside Diameter
Regular price
€161,95
ex VAT
Regular price
Sale price
€161,95
ex VAT
In stock
Price Break
10+
€122,59
20+
€115,70
30+
€114,32
40+
€112,94
50+
€111,57
75+
€110,19
100+
€103,30
200+
€101,93
250+
€100,55
500+
€99,17
1000+
€96,42
Share this product
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Outside Diameter:
- 125.44mm
- Style:
- MSC
Technical
Technical
| Bore | 1-15/16 inch |
|---|---|
| L | 4.9385 inch |
| A | 1.594 inch |
| A1 | 2.109 inch |
| B | 2.187 inch |
| s | 0.877 inch |
| d1 | 2.709 |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rex max speed | 3100 rpm |
| Weight | 2.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-1-15/16G+insonly">1055-1-15/16G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
