SKU: MSC2.11/16-RHP

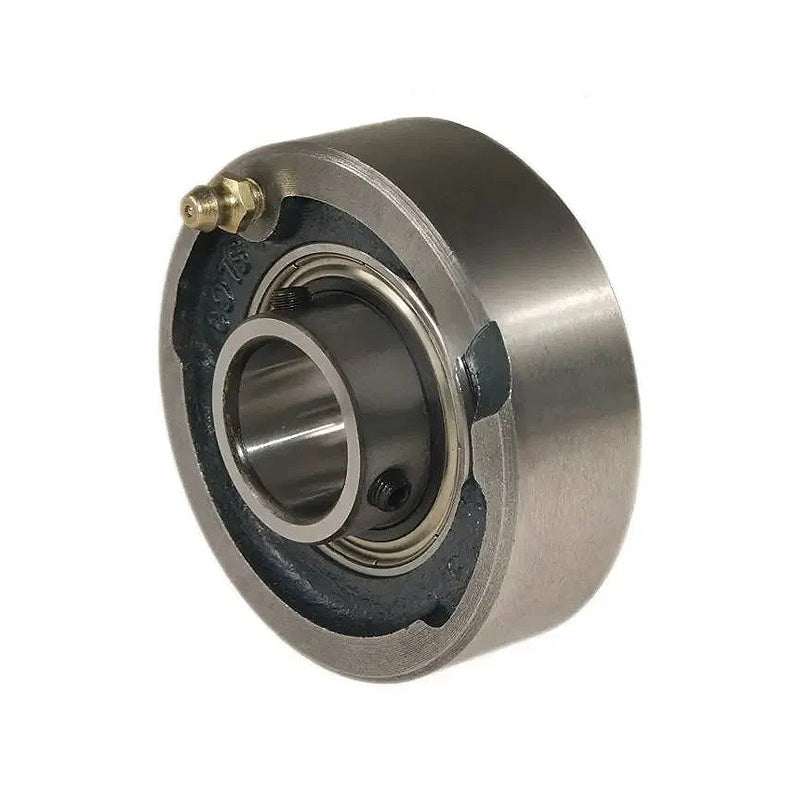

RHP MSC2-11/16 Cast Iron Cartridge Unit with 2-11/16 inch Bore Insert 168.3mm Outside Diameter
RHP MSC2-11/16 Cast Iron Cartridge Unit with 2-11/16 inch Bore Insert 168.3mm Outside Diameter
Regular price
€291,95
ex VAT
Regular price
Sale price
€291,95
ex VAT
In stock
Price Break
10+
€221,90
20+
€209,43
30+
€206,94
40+
€204,44
50+
€201,95
75+
€199,46
100+
€186,99
200+
€184,50
250+
€182,00
500+
€179,51
1000+
€174,52
Share this product
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 68.26mm = 2.687 (2-11/16) inch
- Outside Diameter:
- 168.3mm
- Style:
- MSC
Technical
Technical
| Bore | 2-11/16 inch |
|---|---|
| L | 6.626 inch |
| A | 2 inch |
| A1 | 2.748 inch |
| B | 3.062 inch |
| s | 1.314 inch |
| d1 | 3.622 |
| Dynamic load Cr | 66000 N |
| Static load Cor | 49500 N |
| Rex max speed | 2300 rpm |
| Weight | 6.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-2-11/16G+insonly">1075-2-11/16G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
