SKU: MSC60-RHP
RHP MSC60 Cast Iron Cartridge Unit with 60mm Bore Insert 149.25mm Outside Diameter
RHP MSC60 Cast Iron Cartridge Unit with 60mm Bore Insert 149.25mm Outside Diameter
Regular price
€169,95
ex VAT
Regular price
Sale price
€169,95
ex VAT
In stock
Price Break
10+
€129,31
20+
€122,05
30+
€120,59
40+
€119,14
50+
€117,69
75+
€116,24
100+
€108,97
200+
€107,52
250+
€106,06
500+
€104,61
1000+
€101,71
Share this product
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 149.25mm
- Style:
- MSC
Technical
Technical

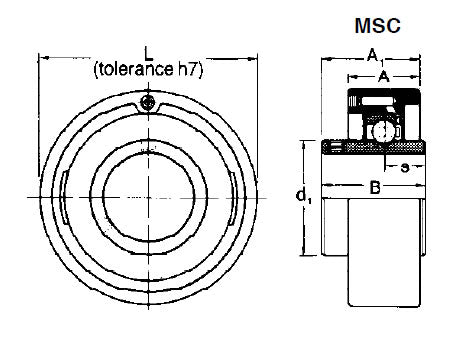

| Bore | 60mm |
|---|---|
| L | 149.25mm |
| A | 41.28mm |
| A1 | 60.3mm |
| B | 65.07mm |
| s | 25.45mm |
| d1 | 75.34 |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rex max speed | 2800 rpm |
| Weight | 4.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-60G+insonly">1060-60G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
