SKU: MST1.7/16-RHP

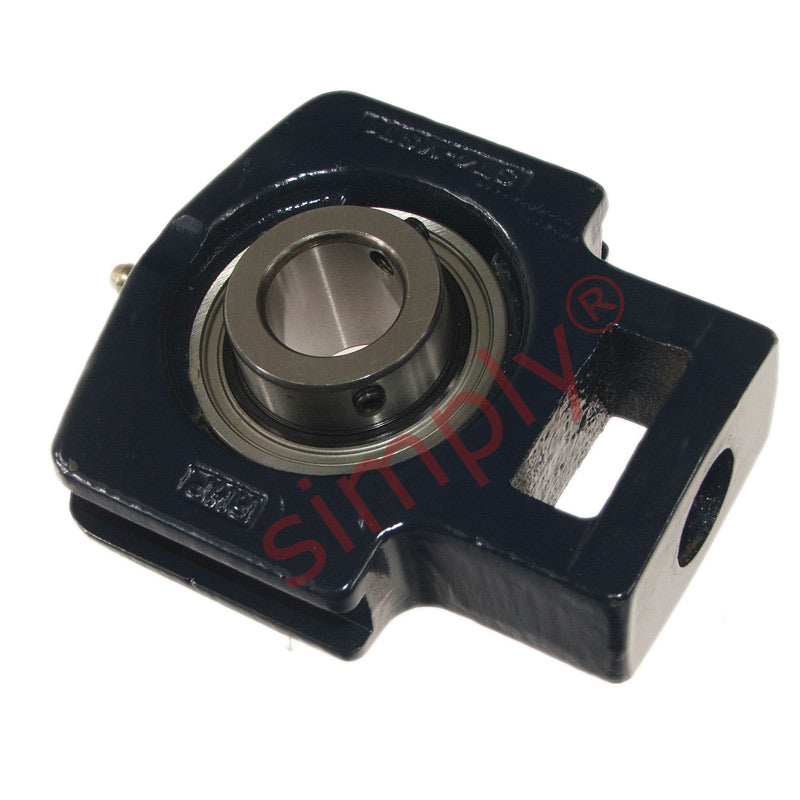

RHP MST1-7/16 Cast Iron Take Up Unit and 1-7/16 inch Bore Insert
RHP MST1-7/16 Cast Iron Take Up Unit and 1-7/16 inch Bore Insert
Regular price
€131,95
ex VAT
Regular price
Sale price
€131,95
ex VAT
In stock
Price Break
10+
€99,81
20+
€94,20
30+
€93,08
40+
€91,96
50+
€90,83
75+
€89,71
100+
€84,11
200+
€82,98
250+
€81,86
500+
€80,74
1000+
€78,50
Share this product
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- MST
Technical
Technical
| Bore | 1-7/16 inch |
|---|---|
| L | 5.65 inch |
| L1 | 3.512 inch |
| L2 | 0.61 inch |
| L3 | 0.807 inch |
| L4 | 3.209 inch |
| L5 | 1.988 inch |
| H | 4.646 inch |
| H1 | 3.248 inch |
| H2 | 1.949 inch |
| H3 | 3.976 inch |
| N | 1.142 inch |
| A | 1.949 inch |
| A1 | 1.457 inch |
| A2 | 0.689 inch |
| B | 1.938 inch |
| B5 | - inch |
| s | 0.752 inch |
| d1 | 2.075 inch |
| d4 | - inch |
| Dynamic load | 32500 N |
| Static load | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 2.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-1-7/16G+insonly">1040-1-7/16G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
