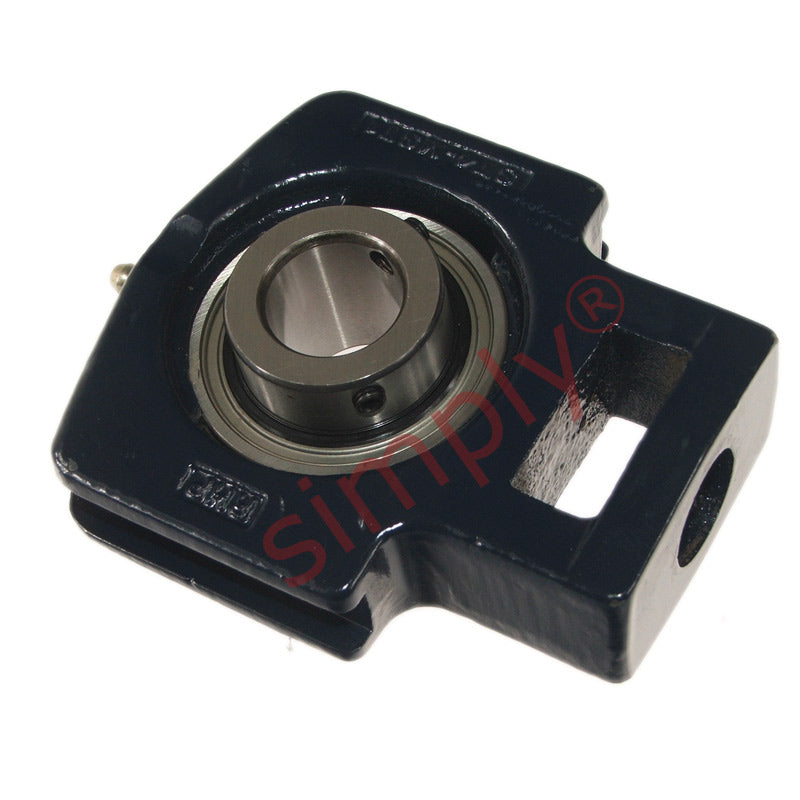

RHP MST1 Cast Iron Take Up Unit and 1 inch Bore Insert

RHP MST1 Cast Iron Take Up Unit and 1 inch Bore Insert
Regular price €99,95 ex VAT
Regular price Sale price €99,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €75,41
20+ €71,18
30+ €70,33
40+ €69,48
50+ €68,63
75+ €67,79
100+ €63,55
200+ €62,70
250+ €61,86
500+ €61,01
1000+ €59,31
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1 inch
L 4.547 inch
L1 2.823 inch
L2 0.492 inch
L3 0.65 inch
L4 2.539 inch
L5 1.693 inch
H 3.996 inch
H1 2.539 inch
H2 1.476 inch
H3 3.504 inch
N 0.886 inch
A 1.437 inch
A1 1.181 inch
A2 0.531 inch
B 1.5 inch
B5 - inch
s 0.627 inch
d1 1.575 inch
d4 - inch
Dynamic load 19500 N
Static load 11300 N
Rec max speed 5300 rpm
Weight 1.6 kg
Insert <a href="advanced_search_result.php?keywords=1030-1G+insonly">1030-1G Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
