SKU: MST2.15/16-RHP

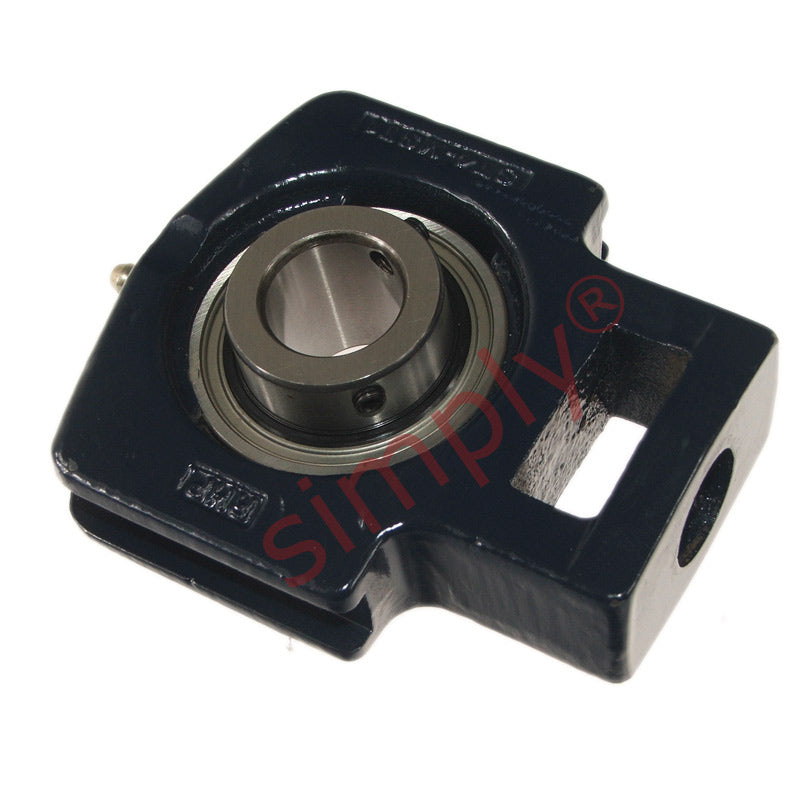

RHP MST2-15/16 Cast Iron Take Up Unit and 2-15/16 inch Bore Insert

RHP MST2-15/16 Cast Iron Take Up Unit and 2-15/16 inch Bore Insert
Regular price €439,95 ex VAT
Regular price Sale price €439,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €334,33
20+ €315,54
30+ €311,79
40+ €308,03
50+ €304,28
75+ €300,52
100+ €281,74
200+ €277,98
250+ €274,22
500+ €270,47
1000+ €262,95
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2-15/16 inch
L 9.114 inch
L1 5.492 inch
L2 0.807 inch
L3 1.26 inch
L4 4.921 inch
L5 2.913 inch
H 7.244 inch
H1 4.449 inch
H2 2.756 inch
H3 6.5 inch
N 1.654 inch
A 2.756 inch
A1 2.126 inch
A2 1.063 inch
B 3.25 inch
B5 - inch
s 1.314 inch
d1 3.878 inch
d4 - inch
Dynamic load 71500 N
Static load 54500 N
Rec max speed 2150 rpm
Weight 9 kg
Insert <a href="advanced_search_result.php?keywords=1080-2-15/16G+insonly">1080-2-15/16G Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
