SKU: MST2.3/4-RHP

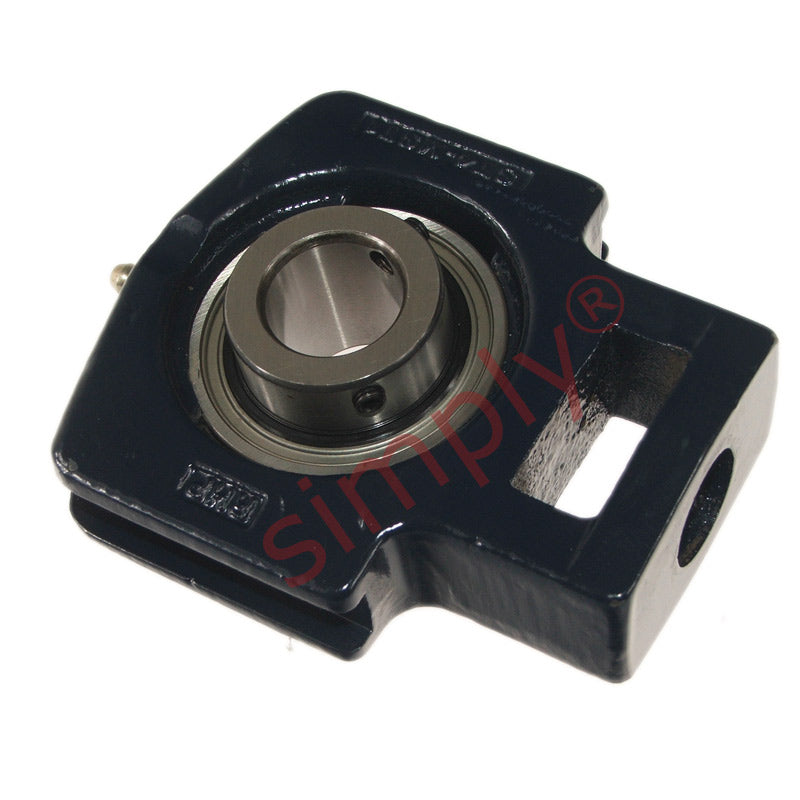

RHP MST2-3/4 Cast Iron Take Up Unit and 2-3/4 inch Bore Insert
RHP MST2-3/4 Cast Iron Take Up Unit and 2-3/4 inch Bore Insert
Regular price
€409,95
ex VAT
Regular price
Sale price
€409,95
ex VAT
In stock
Price Break
10+
€312,16
20+
€294,62
30+
€291,11
40+
€287,61
50+
€284,10
75+
€280,59
100+
€263,05
200+
€259,55
250+
€256,04
500+
€252,53
1000+
€245,52
Share this product
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Style:
- MST
Technical
Technical
| Bore | 2-3/4 inch |
|---|---|
| L | 8.76 inch |
| L1 | 5.413 inch |
| L2 | 0.846 inch |
| L3 | 1.26 inch |
| L4 | 4.744 inch |
| L5 | 3.031 inch |
| H | 6.555 inch |
| H1 | 4.449 inch |
| H2 | 2.756 inch |
| H3 | 5.937 inch |
| N | 1.654 inch |
| A | 2.756 inch |
| A1 | 1.988 inch |
| A2 | 1.063 inch |
| B | 3.062 inch |
| B5 | - inch |
| s | 1.314 inch |
| d1 | 3.622 inch |
| d4 | - inch |
| Dynamic load | 66000 N |
| Static load | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 8.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-2-3/4G+insonly">1075-2-3/4G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
