SKU: MST2.7/16-RHP

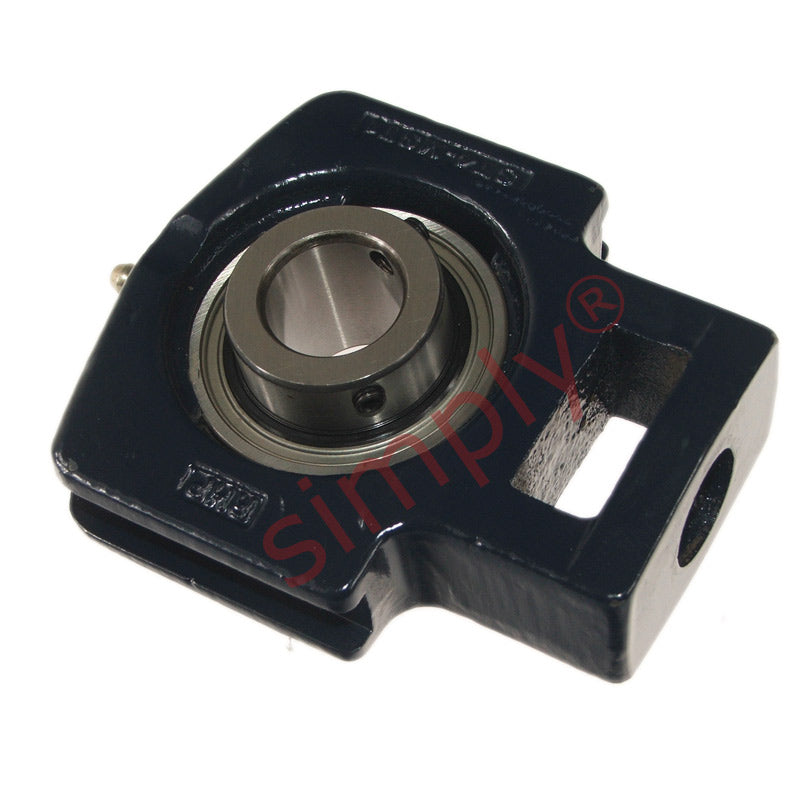

RHP MST2-7/16 Cast Iron Take Up Unit and 2-7/16 inch Bore Insert

RHP MST2-7/16 Cast Iron Take Up Unit and 2-7/16 inch Bore Insert
Regular price €328,95 ex VAT
Regular price Sale price €328,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €250,24
20+ €236,19
30+ €233,37
40+ €230,56
50+ €227,75
75+ €224,94
100+ €210,88
200+ €208,07
250+ €205,26
500+ €202,44
1000+ €196,82
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2-7/16 inch
L 8.76 inch
L1 5.413 inch
L2 0.846 inch
L3 1.26 inch
L4 4.744 inch
L5 3.031 inch
H 6.555 inch
H1 4.449 inch
H2 2.756 inch
H3 5.937 inch
N 1.654 inch
A 2.756 inch
A1 1.988 inch
A2 1.063 inch
B 2.938 inch
B5 - inch
s 1.19 inch
d1 3.425 inch
d4 - inch
Dynamic load 61000 N
Static load 45000 N
Rec max speed 2450 rpm
Weight 7.9 kg
Insert <a href="advanced_search_result.php?keywords=1070-2-7/16G+insonly">1070-2-7/16G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
