SKU: MST2-RHP

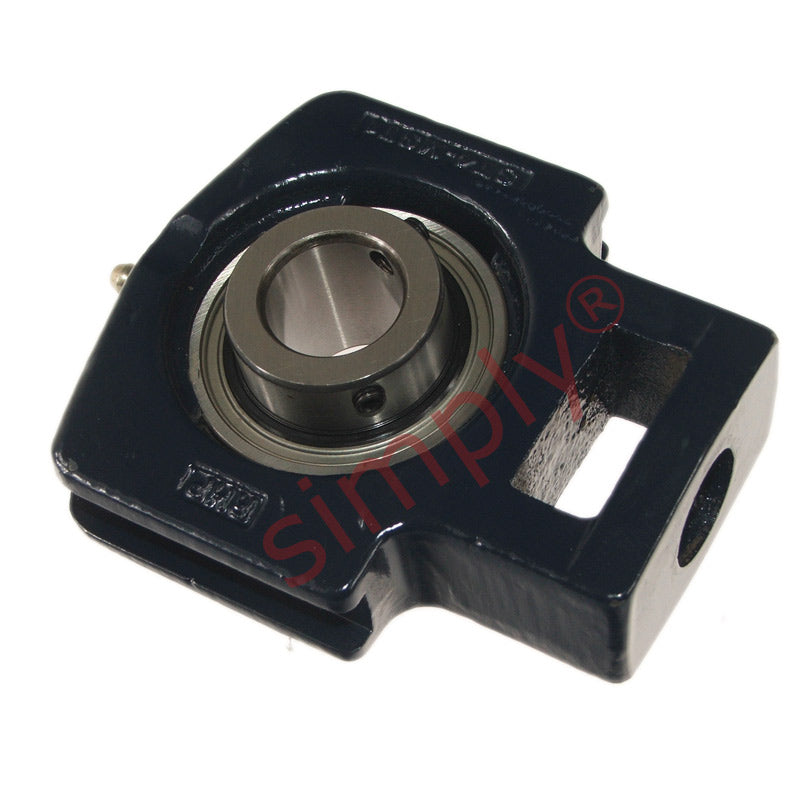

RHP MST2 Cast Iron Take Up Unit and 2 inch Bore Insert
RHP MST2 Cast Iron Take Up Unit and 2 inch Bore Insert
Regular price
€159,95
ex VAT
Regular price
Sale price
€159,95
ex VAT
In stock
Price Break
10+
€121,62
20+
€114,79
30+
€113,42
40+
€112,06
50+
€110,69
75+
€109,32
100+
€102,49
200+
€101,12
250+
€99,76
500+
€98,39
1000+
€95,66
Share this product
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- MST
Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 7.165 inch |
| L1 | 4.488 inch |
| L2 | 0.748 inch |
| L3 | 1.26 inch |
| L4 | 3.839 inch |
| L5 | 2.756 inch |
| H | 5.748 inch |
| H1 | 3.976 inch |
| H2 | 2.52 inch |
| H3 | 5.118 inch |
| N | 1.378 inch |
| A | 2.5 inch |
| A1 | 1.831 inch |
| A2 | 1.063 inch |
| B | 2.187 inch |
| B5 | - inch |
| s | 0.877 inch |
| d1 | 2.709 inch |
| d4 | - inch |
| Dynamic load | 43500 N |
| Static load | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-2G+insonly">1055-2G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
