SKU: MST3.1/4-RHP

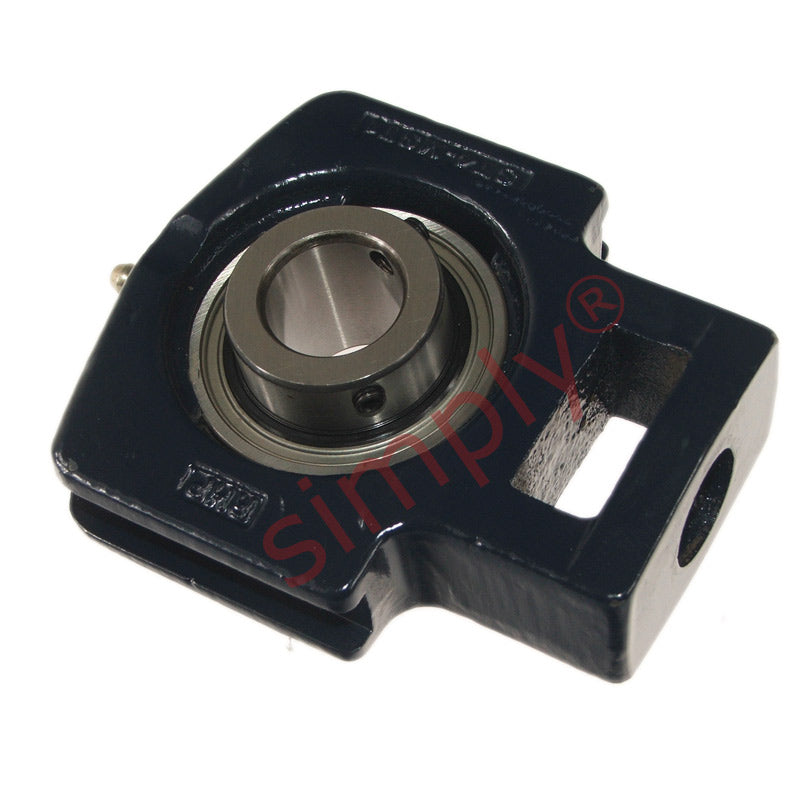

RHP MST3-1/4 Cast Iron Take Up Unit and 3-1/4 inch Bore Insert

RHP MST3-1/4 Cast Iron Take Up Unit and 3-1/4 inch Bore Insert
Regular price €781,95 ex VAT
Regular price Sale price €781,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €595,52
20+ €562,06
30+ €555,37
40+ €548,68
50+ €541,99
75+ €535,30
100+ €501,84
200+ €495,15
250+ €488,46
500+ €481,77
1000+ €468,39
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 3-1/4 inch
L 10.256 inch
L1 6.378 inch
L2 1.122 inch
L3 1.496 inch
L4 5.512 inch
L5 3.562 inch
H 7.815 inch
H1 4.882 inch
H2 2.874 inch
H3 6.811 inch
N 1.87 inch
A 3.13 inch
A1 2.697 inch
A2 1.813 inch
B 3.375 inch
B5 - inch
s 1.346 inch
d1 4.174 inch
d4 - inch
Dynamic load 83000 N
Static load 64000 N
Rec max speed 2000 rpm
Weight 13.7 kg
Insert <a href="advanced_search_result.php?keywords=1085-3-1/4G+insonly">1085-3-1/4G Click Here</a>
Casting group 11
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
