SKU: MST3.15/16-RHP

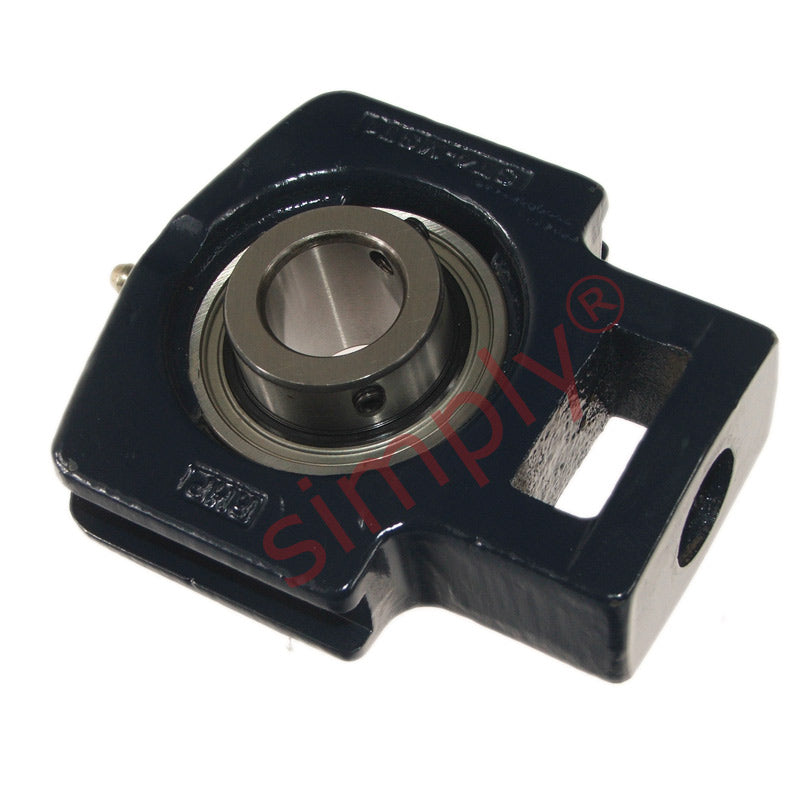

RHP MST3-15/16 Cast Iron Take Up Unit and 3-15/16 inch Bore Insert

RHP MST3-15/16 Cast Iron Take Up Unit and 3-15/16 inch Bore Insert
Regular price €1.216,95 ex VAT
Regular price Sale price €1.216,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €926,71
20+ €874,64
30+ €864,23
40+ €853,82
50+ €843,41
75+ €832,99
100+ €780,93
200+ €770,52
250+ €760,11
500+ €749,70
1000+ €728,87
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 3-15/16 inch
L 12.5 inch
L1 7.5 inch
L2 1.26 inch
L3 1.496 inch
L4 6.89 inch
L5 4.055 inch
H 10.256 inch
H1 6.004 inch
H2 3.366 inch
H3 9.252 inch
N 2.146 inch
A 3.878 inch
A1 3.248 inch
A2 2.187 inch
B 4.625 inch
B5 - inch
s 1.94 inch
d1 5.135 inch
d4 - inch
Dynamic load 157000 N
Static load 122000 N
Rec max speed 1600 rpm
Weight 22.2 kg
Insert <a href="advanced_search_result.php?keywords=3095-3-15/16G+insonly">3095-3-15/16G Click Here</a>
Casting group 13
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
