SKU: MST55-RHP

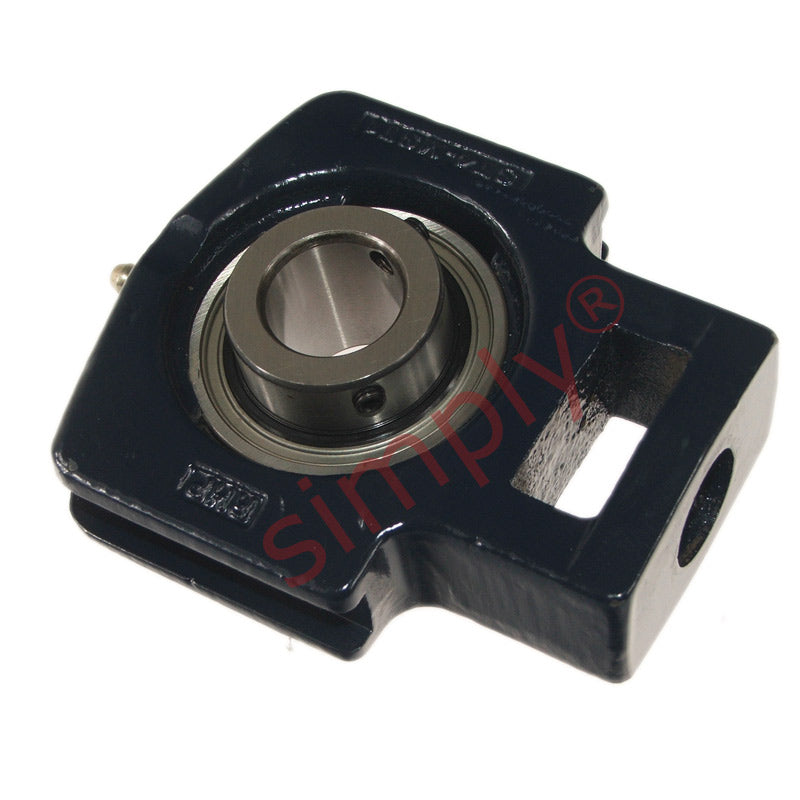

RHP MST55 Cast Iron Take Up Unit and 55mm Bore Insert
RHP MST55 Cast Iron Take Up Unit and 55mm Bore Insert
Regular price
€219,95
ex VAT
Regular price
Sale price
€219,95
ex VAT
In stock
Price Break
10+
€167,37
20+
€157,97
30+
€156,09
40+
€154,21
50+
€152,33
75+
€150,45
100+
€141,04
200+
€139,16
250+
€137,28
500+
€135,40
1000+
€131,64
Share this product
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55mm
- Style:
- MST
Technical
Technical
| Bore | 55mm |
|---|---|
| L | 192mm |
| L1 | 119mm |
| L2 | 19mm |
| L3 | 32mm |
| L4 | 97.5mm |
| L5 | 70mm |
| H | 146mm |
| H1 | 101mm |
| H2 | 64mm |
| H3 | 130mm |
| N | 35mm |
| A | 63.5mm |
| A1 | 46.5mm |
| A2 | 27mm |
| B | 65.07mm |
| B5 | -mm |
| s | 25.45mm |
| d1 | 73.34mm |
| d4 | -mm |
| Dynamic load | 48000 N |
| Static load | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 5.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-55G+insonly">1060-55G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4mm x 28 TPI |
