SKU: MUCNFL205-SNR

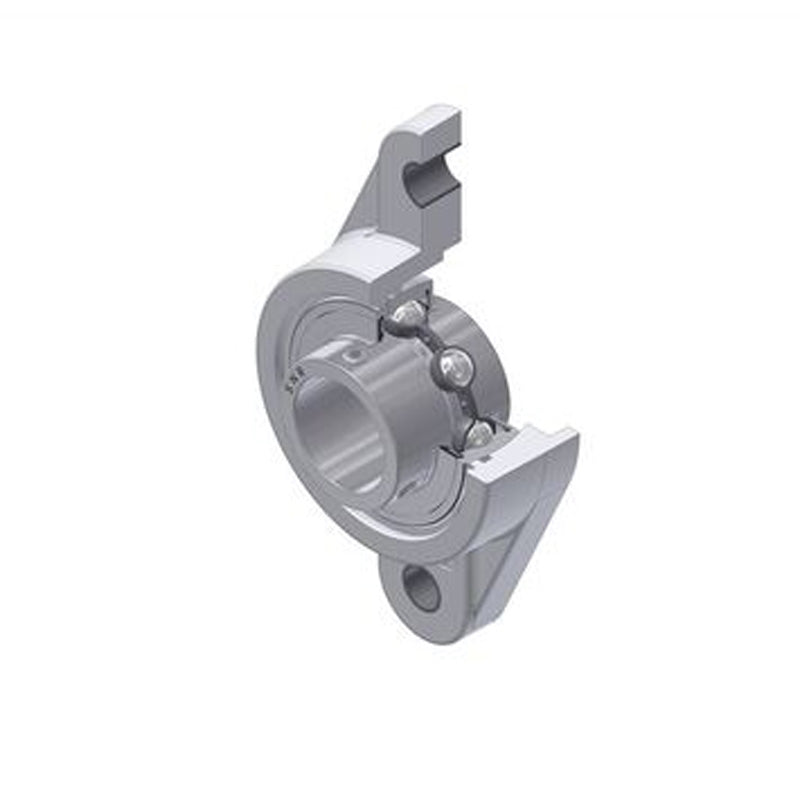

SNR MUCNFL205 Metric Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 25mm Bore Insert - Allow 2-3 Days

SNR MUCNFL205 Metric Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 25mm Bore Insert - Allow 2-3 Days
Regular price €77,95 ex VAT
Regular price Sale price €77,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €65,79
4+ €63,13
9+ €61,80
19+ €59,81
49+ €58,48
99+ €55,15
499+ €46,52
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 25mm
A - Housing height 29.1mm
A1 - Housing foot height / flange height 13.5mm
A2 - Total height from mounting surface 36.8mm
B - Width of Inner Ring 34.1mm
d - Shaft diameter 25mm
e - Distance mounting surface to bearing centre 17mm
G - Grease fitting 1/4-28 inch
H - Housing length, width or diameter 130mm
J - Mounting holes distance 99mm
L - Housing width / diameter 70mm
N - Mounting hole dimension 11mm
S - Distance front side/bearing centre 14.3mm
C - Dynamic load rating 11.9 kN
C0 - Static load rating 6.3 kN
Operating temperature min. -20 Deg C
Operating temperature max. 100 Deg C
Mass 0.3kg
Recommended tightening torque for set screw 3.9 Nm
