SKU: MUCNFL207-SNR

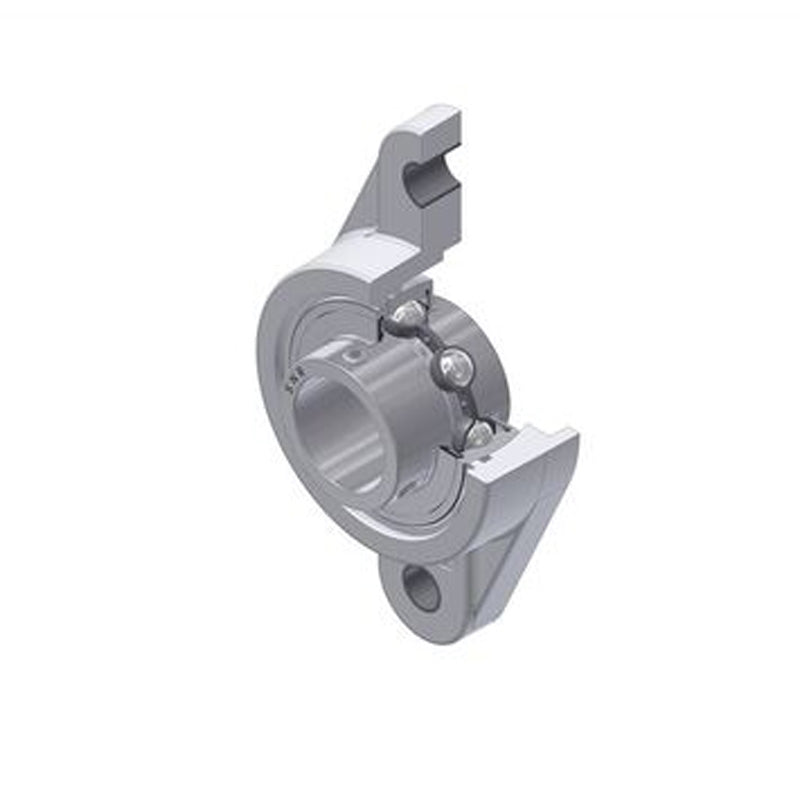

SNR MUCNFL207 Metric Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 35mm Bore Insert - Allow 2-3 Days

SNR MUCNFL207 Metric Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 35mm Bore Insert - Allow 2-3 Days
Regular price €116,95 ex VAT
Regular price Sale price €116,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €98,73
4+ €94,74
9+ €92,75
19+ €89,76
49+ €87,76
99+ €82,78
499+ €69,81
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 35mm
A - Housing height 32.8mm
A1 - Housing foot height / flange height 16.1mm
A2 - Total height from mounting surface 43.4mm
B - Width of Inner Ring 42.9mm
d - Shaft diameter 35mm
e - Distance mounting surface to bearing centre 18mm
G - Grease fitting 1/4-28 inch
H - Housing length, width or diameter 163mm
J - Mounting holes distance 130mm
L - Housing width / diameter 90mm
N - Mounting hole dimension 13mm
S - Distance front side/bearing centre 17.5mm
C - Dynamic load rating 22 kN
C0 - Static load rating 12.3 kN
Operating temperature min. -20 Deg C
Operating temperature max. 100 Deg C
Mass 0.66kg
Recommended tightening torque for set screw 8.3 Nm
