SKU: N1400-046

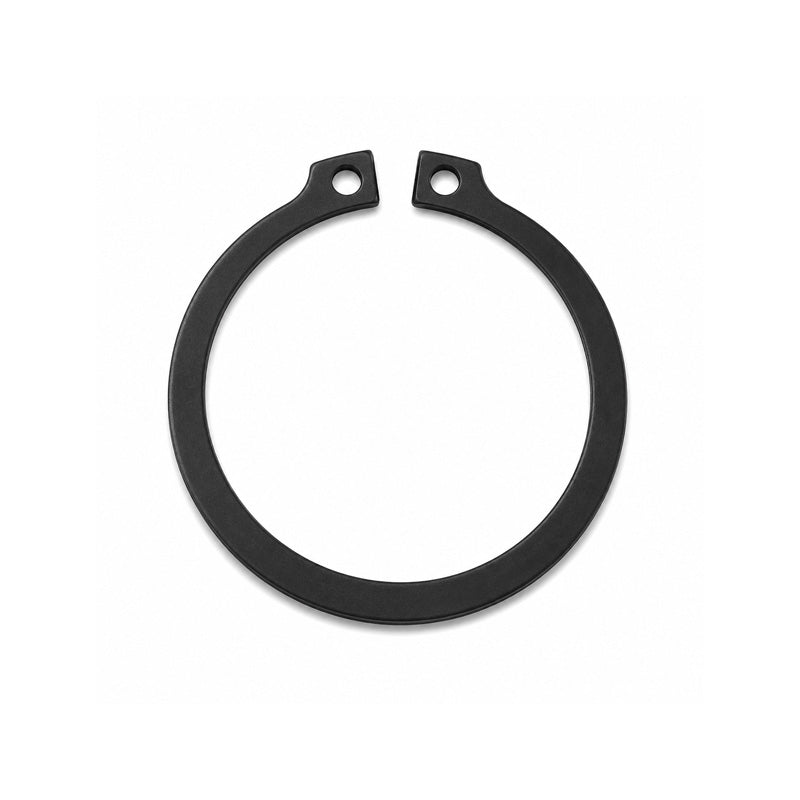

External Circlip for 0.46 inch Shaft Diameter Un-Sprung Diameter 0.428 inch
External Circlip for 0.46 inch Shaft Diameter Un-Sprung Diameter 0.428 inch
Regular price
€1,95
ex VAT
Regular price
Sale price
€1,95
ex VAT
Equivalent to: N1400-046
In stock
Price Break
10+
€0,43
20+
€0,29
50+
€0,18
100+
€0,13
500+
€0,07
1000+
€0,05
Description
Description
|
Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable. |
Equivalent: N1400-046
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 10.87mm = 0.428 inch
- Material:
- Sprung Carbon Steel
- Shaft Size:
- 11.91mm = 0.469 (15/32) inch
- Thickness:
- 0.64mm = 0.025 inch
- Groove Diameter:
- 11.25mm = 0.443 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 0.469 inch |
| Ring Thickness (t) | 0.025 inch |
| Thickness tolerance (t) | 0.002 inch |
| Unstressed diameter (D) | 0.428 inch |
| Unstressed diameter tolerance (D) | +0.002 / -0.005 inch |
| Lug (L) | 0.091 inch |
| Beam (b) | 0.06 inch |
| h | 0.039 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 0.443 inch |
| Groove tolerance (G) | 0.002 inch |
| Minimum Groove Width (W) | 0.029 inch |
| Groove Width Tolerance (W) | +0.003 / -0.000 inch |
| Groove depth (d) | 0.013 inch |
