SKU: N1400-181

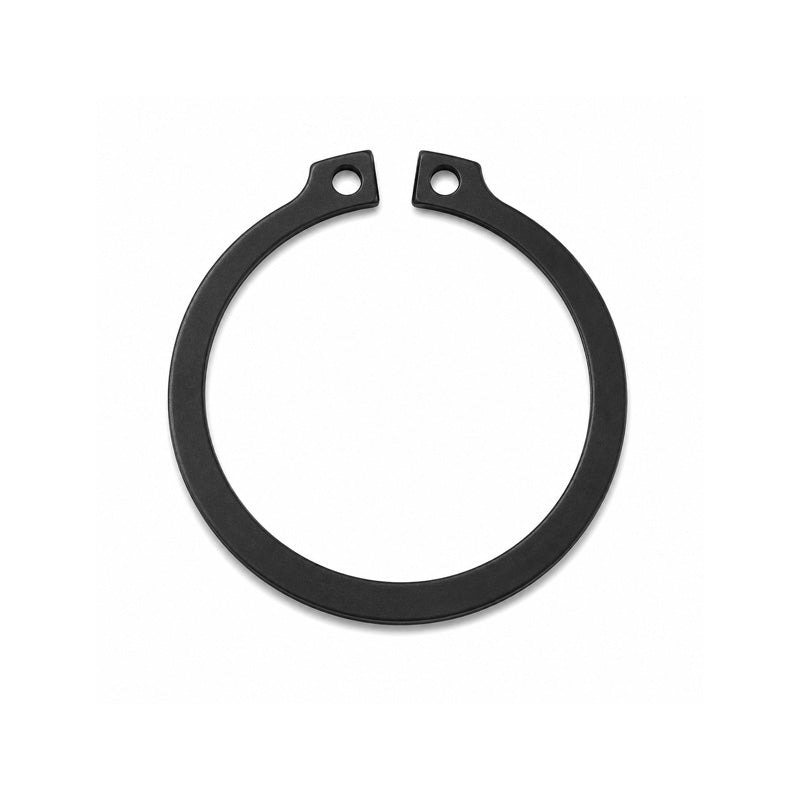

External Circlip for 1.81 inch Shaft Diameter Un-Sprung Diameter 1.675 inch
External Circlip for 1.81 inch Shaft Diameter Un-Sprung Diameter 1.675 inch
Regular price
€1,95
ex VAT
Regular price
Sale price
€1,95
ex VAT
Equivalent to: N1400-181
In stock
Price Break
5+
€0,67
10+
€0,57
20+
€0,52
50+
€0,48
100+
€0,38
500+
€0,33
1000+
€0,29
Description
Description
|
Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable. |
Equivalent: N1400-181
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 42.55mm = 1.675 inch
- Material:
- Sprung Carbon Steel
- Shaft Size:
- 46.04mm = 1.812 (1-13/16) inch
- Thickness:
- 1.57mm = 0.062 inch
- Groove Diameter:
- 43.38mm = 1.708 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 1.812 inch |
| Ring Thickness (t) | 0.062 inch |
| Thickness tolerance (t) | 0.003 inch |
| Unstressed diameter (D) | 1.675 inch |
| Unstressed diameter tolerance (D) | +0.013 / -0.020 inch |
| Lug (L) | 0.205 inch |
| Beam (b) | 0.197 inch |
| h | 0.1 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 1.708 inch |
| Groove tolerance (G) | 0.005 inch |
| Minimum Groove Width (W) | 0.068 inch |
| Groove Width Tolerance (W) | +0.004 / -0.000 inch |
| Groove depth (d) | 0.052 inch |
