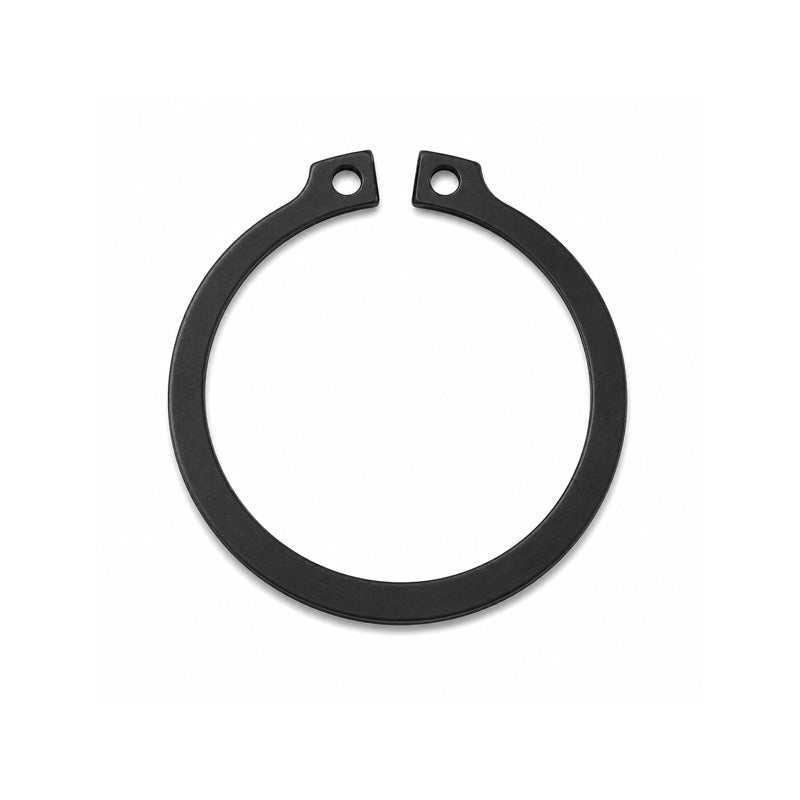

External Circlip for 1.96 inch Shaft Diameter Un-Sprung Diameter 1.819 inch
External Circlip for 1.96 inch Shaft Diameter Un-Sprung Diameter 1.819 inch
Regular price
€1,95
ex VAT
Regular price
Sale price
€1,95
ex VAT
Equivalent to: N1400-196
In stock
Price Break
5+
€0,83
10+
€0,71
20+
€0,65
50+
€0,60
100+
€0,48
500+
€0,42
1000+
€0,36
Description
Description
|
Imperial External Circlips: The most common form of axially fitted circlips for shafts with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Standard material: Carbon Spring Steel - Standard Finish: Phosphate and Oil Benefits: Cost effective replacement, durable, removable. |
Equivalent: N1400-196
- Brand / Quality:
- Simply Circlips - Economy Quality
- Inside Diameter:
- 46.2mm = 1.819 inch
- Material:
- Sprung Carbon Steel
- Shaft Size:
- 49.99mm = 1.968 inch
- Thickness:
- 1.57mm = 0.062 inch
- Groove Diameter:
- 47.17mm = 1.857 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (S) | 1.968 inch |
| Ring Thickness (t) | 0.062 inch |
| Thickness tolerance (t) | 0.003 inch |
| Unstressed diameter (D) | 1.819 inch |
| Unstressed diameter tolerance (D) | +0.013 / -0.020 inch |
| Lug (L) | 0.205 inch |
| Beam (b) | 0.197 inch |
| h | 0.123 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 1.857 inch |
| Groove tolerance (G) | 0.005 inch |
| Minimum Groove Width (W) | 0.068 inch |
| Groove Width Tolerance (W) | +0.004 / -0.000 inch |
| Groove depth (d) | 0.055 inch |
