SKU: N205/C3-MB

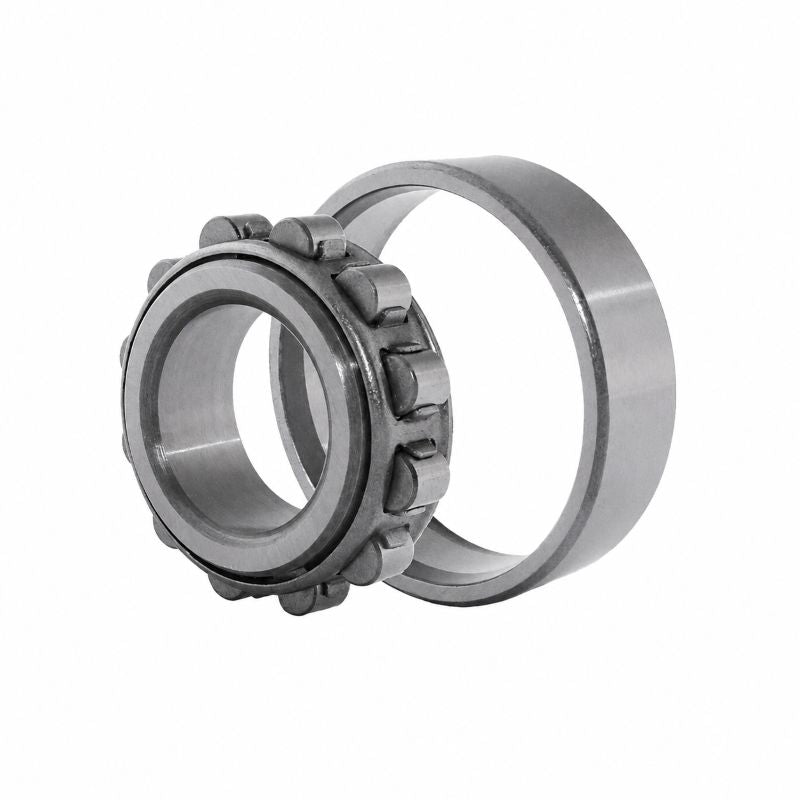

Branded N205C3 Single Row Cylindrical Roller Bearing 25x52x15mm
Branded N205C3 Single Row Cylindrical Roller Bearing 25x52x15mm
Regular price
€77,95
ex VAT
Regular price
Sale price
€77,95
ex VAT
In stock
Price Break
10+
€59,18
19+
€55,85
29+
€55,19
39+
€54,52
49+
€53,86
74+
€53,19
99+
€49,87
199+
€49,20
249+
€48,54
499+
€47,87
999+
€46,54
Description
Description
|
N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dynamic load C | 28.6 kN |
| Static load Co | 27 kN |
| Fatigue load limit Pu | 3.35 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 16000 rpm |
| Weight | 0.13 kg |
| d1 | 34.7mm |
| F, E | 46.5mm |
| r1r2 min | 1mm |
| r3r4 min | 0.6mm |
| s | 1.3mm |
| da min | 30.6mm |
| da max | 45mm |
| db min | 48mm |
| Da max | 47.8mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.15 |
