SKU: N221-EU

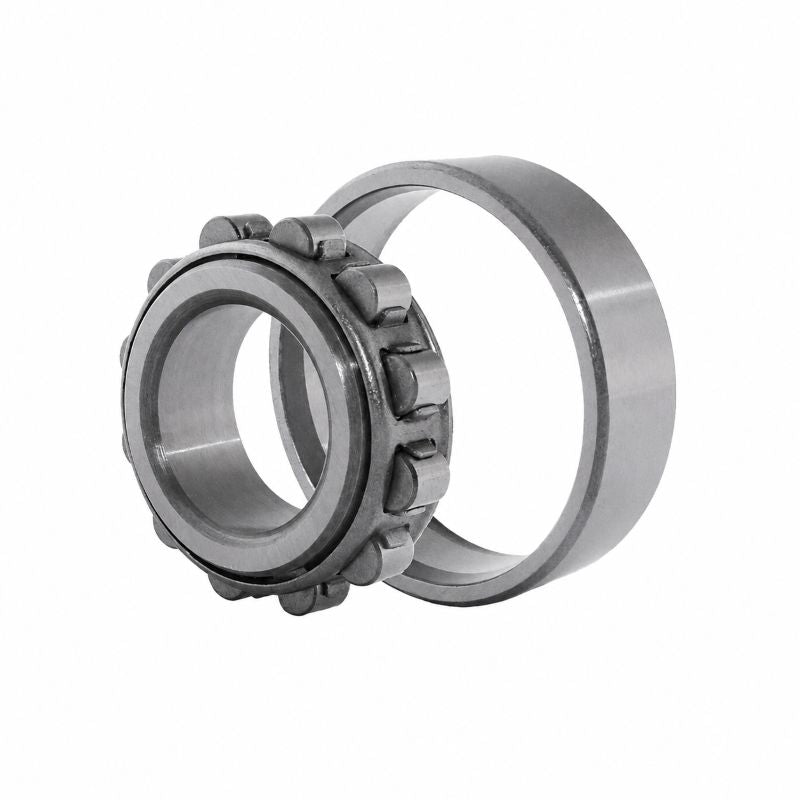

N221 Budget Single Row Cylindrical Roller Bearing 105x190x36mm
N221 Budget Single Row Cylindrical Roller Bearing 105x190x36mm
Regular price
€779,95
ex VAT
Regular price
Sale price
€779,95
ex VAT
In stock
Price Break
10+
€593,38
19+
€560,04
29+
€553,38
39+
€546,71
49+
€540,04
74+
€533,38
99+
€500,04
199+
€493,37
249+
€486,70
499+
€480,04
999+
€466,70
Description
Description
|
N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 190mm
- Width:
- 36mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 105mm |
|---|---|
| D | 190mm |
| B | 36mm |
| Dynamic load C | 300 kN |
| Static load Co | 315 kN |
| Fatigue load limit Pu | 36.5 kN |
| Reference speed | 3800 rpm |
| Limiting speed | 4300 rpm |
| Weight | 3.95 kg |
| d1 | 134mm |
| F, E | 173mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| s | 2mm |
| da min | 117mm |
| da max | 170mm |
| db min | 176mm |
| Da max | 178mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
