SKU: N313ECP/C3-SKF

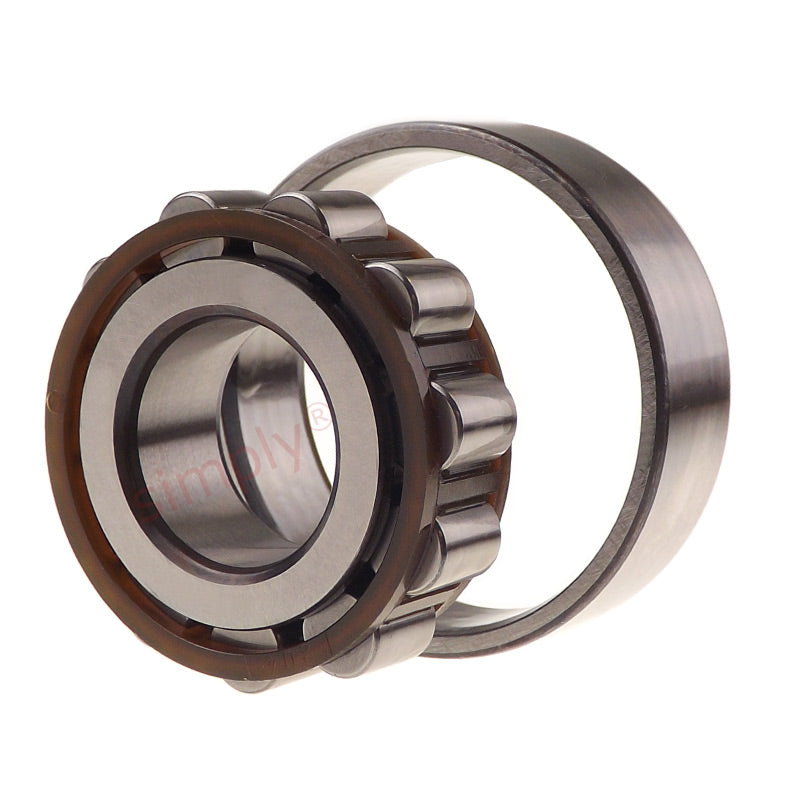

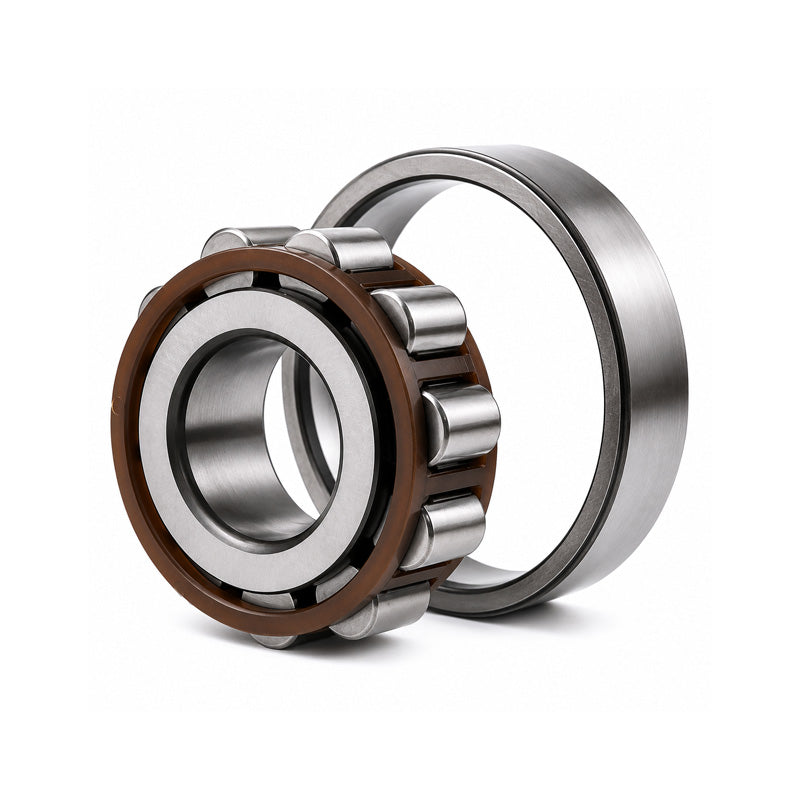

SKF N313ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 65x140x33mm

Name: SKF N313ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 65x140x33mm
Brand: SKF
SKU: N313ECP/C3-SKF
Price: 274.95 EUR
Availability: InStock

€274,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €209,11

19+ €197,36

29+ €195,01

39+ €192,66

49+ €190,31

74+ €187,96

99+ €176,22

199+ €173,87

249+ €171,52

499+ €169,17

999+ €164,47

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: SKF - High Quality
Inside Diameter:: 65mm
Outside Diameter:: 140mm
Width:: 33mm
Seals / Shields:: None
Clearance:: C3

Technical

d	65mm
D	140mm
B	33mm
Dynamic load C	212 kN
Static load Co	196 kN
Fatigue load limit Pu	25.5 kN
Reference speed	5300 rpm
Limiting speed	6000 rpm
Weight	2.2 kg
Alt cage	M
d1	90.5mm
F,E	124.5mm
r1r2 min	2.1mm
r3r4 min	2.1mm
S	2.2mm
da min	77mm
da max	122mm
db	127mm
Da max	128mm
ra max	2mm
rb max	2mm
kr	0.15
