SKU: N322ECP-SKF

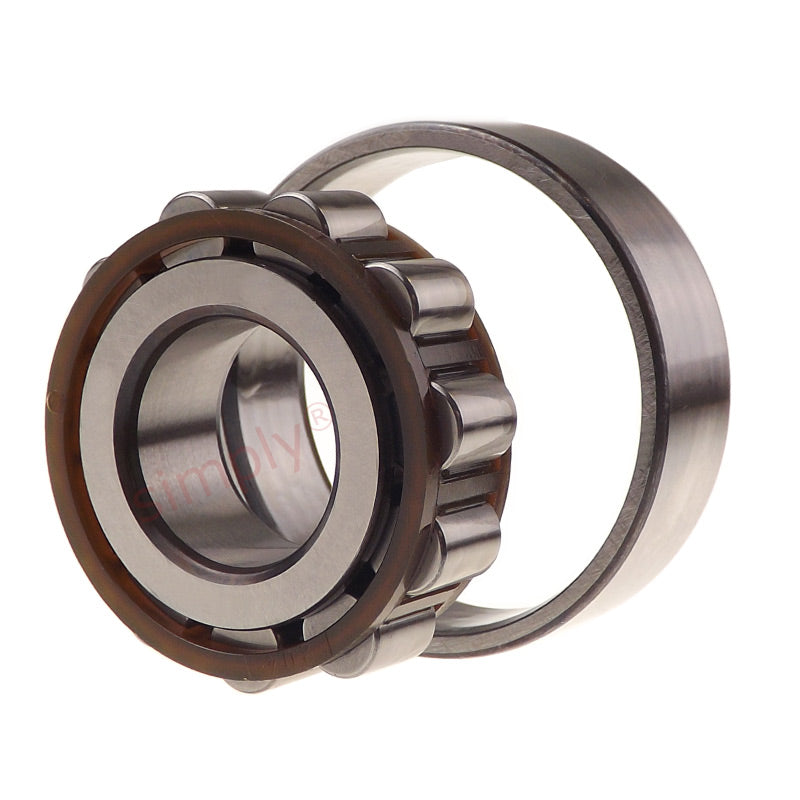

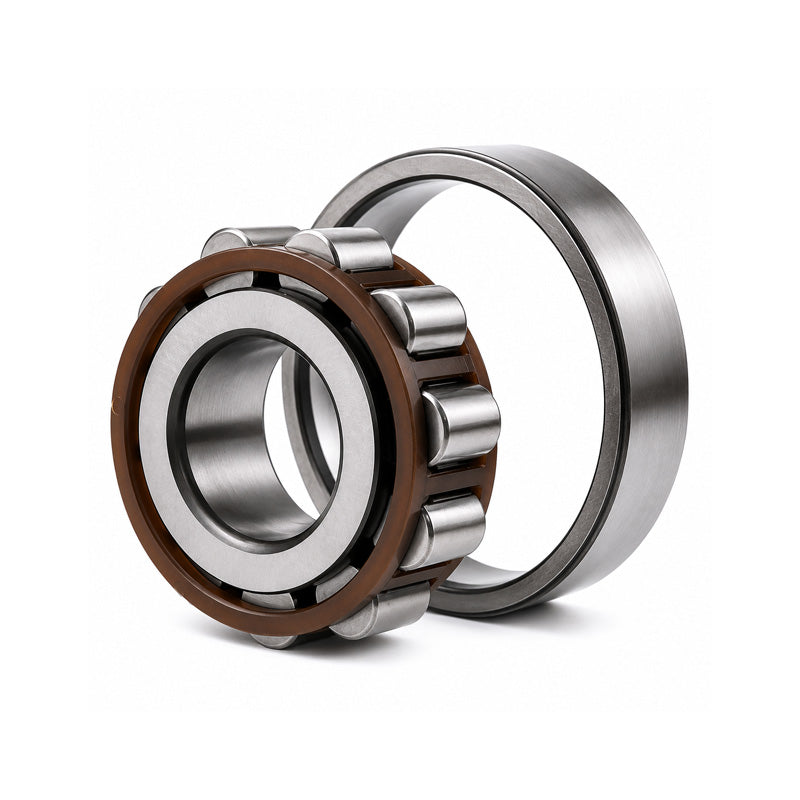

SKF N322ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 110x240x50mm

Name: SKF N322ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 110x240x50mm
Brand: SKF
SKU: N322ECP-SKF
Price: 815.95 EUR
Availability: InStock

€815,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €621,37

19+ €586,46

29+ €579,48

39+ €572,50

49+ €565,52

74+ €558,54

99+ €523,63

199+ €516,65

249+ €509,66

499+ €502,68

999+ €488,72

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: SKF - High Quality
Inside Diameter:: 110mm
Outside Diameter:: 240mm
Width:: 50mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	110mm
D	240mm
B	50mm
Dynamic load C	530 kN
Static load Co	540 kN
Fatigue load limit Pu	61 kN
Reference speed	3000 rpm
Limiting speed	3400 rpm
Weight	10.2 kg
Alt cage	M
d1	155mm
F,E	211mm
r1r2 min	3mm
r3r4 min	3mm
S	3mm
da min	124mm
da max	208mm
db	215mm
Da max	226mm
ra max	2.5mm
rb max	2.5mm
kr	0.15
