SKU: N324ECP/C3-SKF

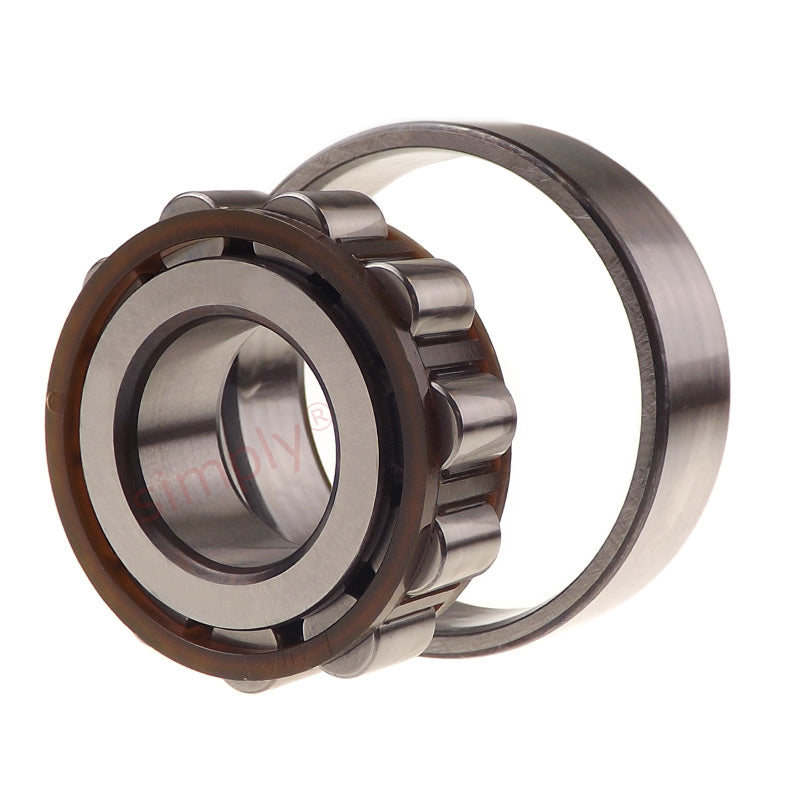

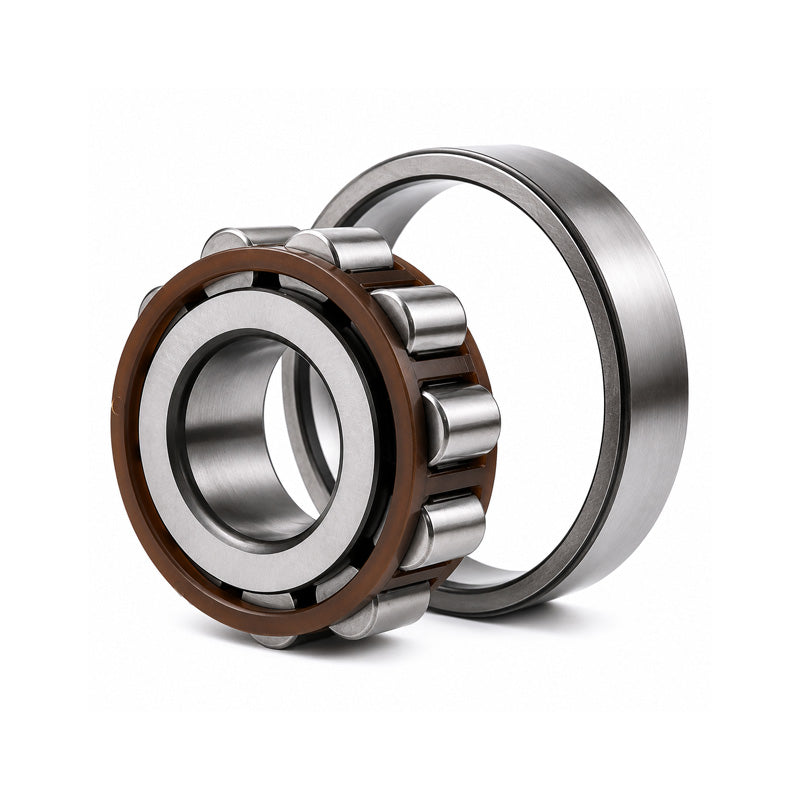

SKF N324ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 120x260x55mm
SKF N324ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 120x260x55mm
Regular price
€899,95
ex VAT
Regular price
Sale price
€899,95
ex VAT
In stock
Price Break
10+
€685,08
19+
€646,59
29+
€638,90
39+
€631,20
49+
€623,50
74+
€615,80
99+
€577,32
199+
€569,62
249+
€561,92
499+
€554,22
999+
€538,83
Description
Description
|
SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 260mm
- Width:
- 55mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 120mm |
|---|---|
| D | 260mm |
| B | 55mm |
| Dynamic load C | 610 kN |
| Static load Co | 620 kN |
| Fatigue load limit Pu | 69.5 kN |
| Reference speed | 2800 rpm |
| Limiting speed | 3200 rpm |
| Weight | 13 kg |
| Alt cage | M |
| d1 | 168mm |
| F,E | 230mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 3.7mm |
| da min | 134mm |
| da max | 226mm |
| db | 234mm |
| Da max | 246mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
