SKU: NA4830C3-NTN

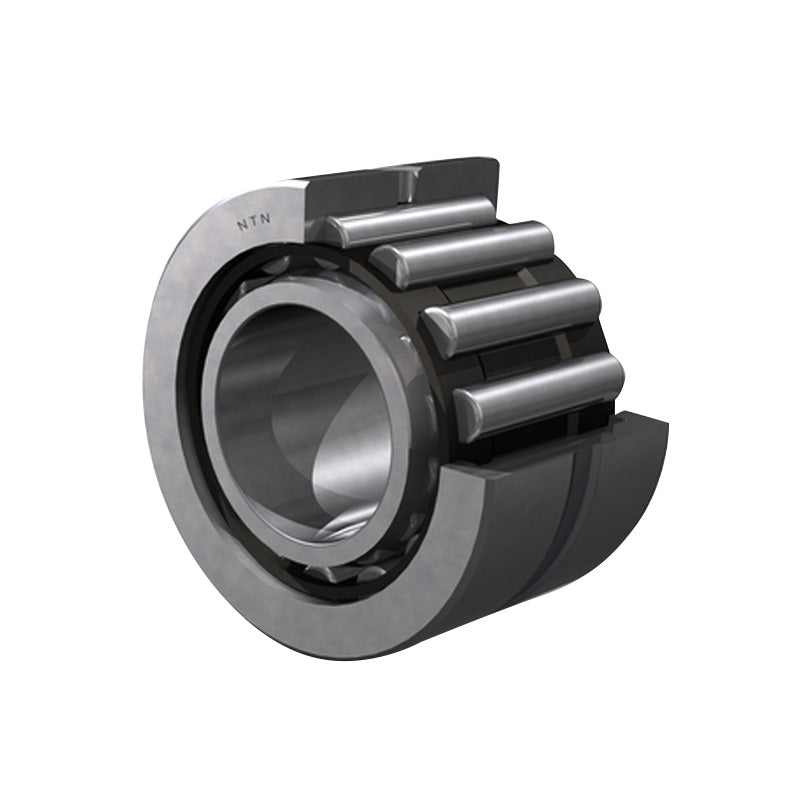

NTN NA4830C3 Machined Needle Roller Bearing with Shaft Sleeve 150x190x40mm - Allow 2-3 Days

NTN NA4830C3 Machined Needle Roller Bearing with Shaft Sleeve 150x190x40mm - Allow 2-3 Days
Regular price €362,95 ex VAT
Regular price Sale price €362,95 ex VAT
Sale Sold out

In stock

Price Break
3+ €307,31
4+ €294,89
9+ €288,68
19+ €279,37
49+ €273,16
99+ €257,64
499+ €217,29
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 150mm
D - Outside diameter 190mm
C - Width of bearing, drawn cup or outer ring 40mm
F - Under roller diameter 165mm
rs - Minimum fillet radius 1.1mm
s - Max axial offset 1.5mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Lubrication hole on innr ring? No
Radial clearance class C3
Precision class P0
Cr - Dynamic load rating 152 kN
C0r - Static load rating 390 kN
N - Grease lubrication limit speed 1600 tr/min
N - Oil lubrication limit speed 2400 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 156.5mm
Da max - Outer ring maximum shoulder diameter 183.5mm
ras max - Maximum shaft & housing fillet radius 1mm
