SKU: NA4924-EU

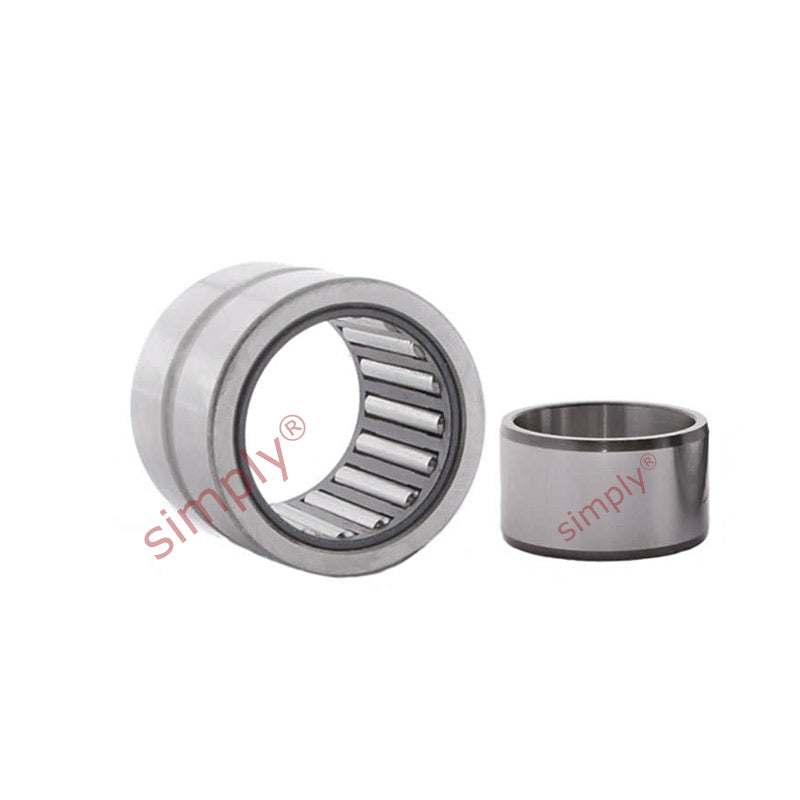

NA4924 Budget Needle Roller Bearing / Shaft Sleeve 120x165x45mm
NA4924 Budget Needle Roller Bearing / Shaft Sleeve 120x165x45mm
Regular price
€295,95
ex VAT
Regular price
Sale price
€295,95
ex VAT
In stock
Price Break
10+
€224,70
19+
€212,08
29+
€209,55
39+
€207,03
49+
€204,50
74+
€201,98
99+
€189,36
199+
€186,83
249+
€184,31
499+
€181,78
999+
€176,73
Description
Description
|
Budget Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes. Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 165mm
- Width:
- 45mm
Technical
Technical
| d | 120mm |
|---|---|
| D | 165mm |
| B | 45mm |
| Dynamic load C | 176000 N |
| Static load Co | 405000 N |
| Fatigue load limit Pu | 47500 N |
| Speed in grease | 1900 rpm |
| Speed in oil | 3000 rpm |
| F | 135mm |
| r1r2 | 1.1mm |
| S (axial disp) | 2mm |
| da min | 126.5mm |
| Da max | 158.5mm |
| ra max | 1mm |
