SKU: NAO15x28x13-MB

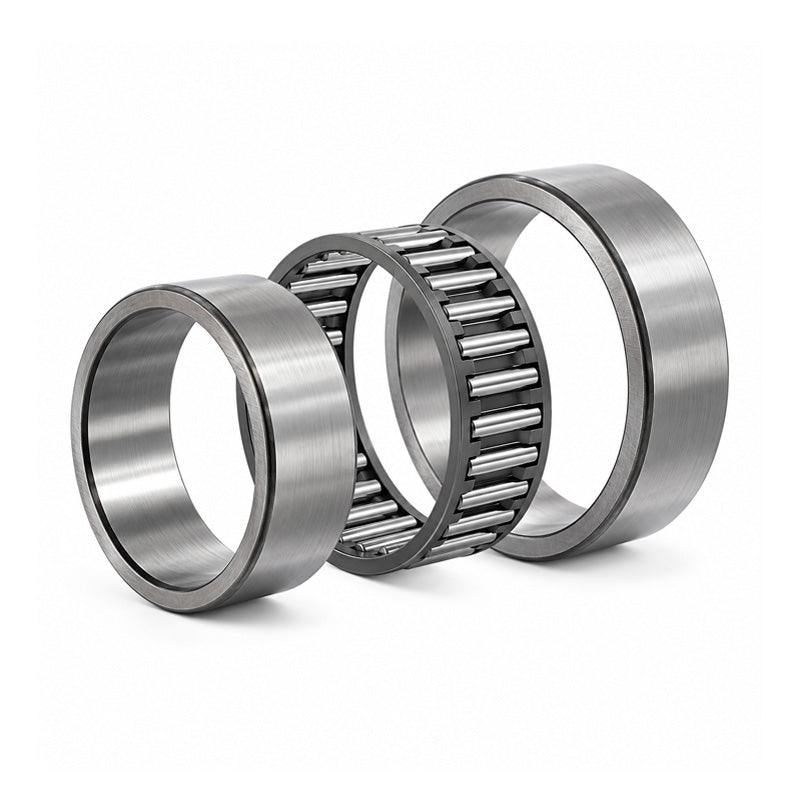

Major Brand NAO15x28x13 Needle Roller Bearings with Machined Rings and an Inner Ring
Major Brand NAO15x28x13 Needle Roller Bearings with Machined Rings and an Inner Ring
Regular price
€25,95
ex VAT
Regular price
Sale price
€25,95
ex VAT
In stock
Price Break
10+
€19,70
19+
€18,60
29+
€18,37
39+
€18,15
49+
€17,93
74+
€17,71
99+
€16,60
199+
€16,38
249+
€16,16
499+
€15,94
999+
€15,50
Description
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 13mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 28mm |
| B | 13mm |
| Dynamic load | 9520 N |
| Static load | 14600 N |
| Fatigue load limit Pu | 1660 N |
| Speed in grease | 14000 rpm |
| Speed in oil | 20000 rpm |
| E | 24mm |
| F | 20mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.5mm |
| da | 23.6mm |
| db | 19.5mm |
| Da | 24.3mm |
| Db | 20.4mm |
| ra max | 0.3mm |
| Weight | 29 g |
