SKU: NAO15x32x12-MB

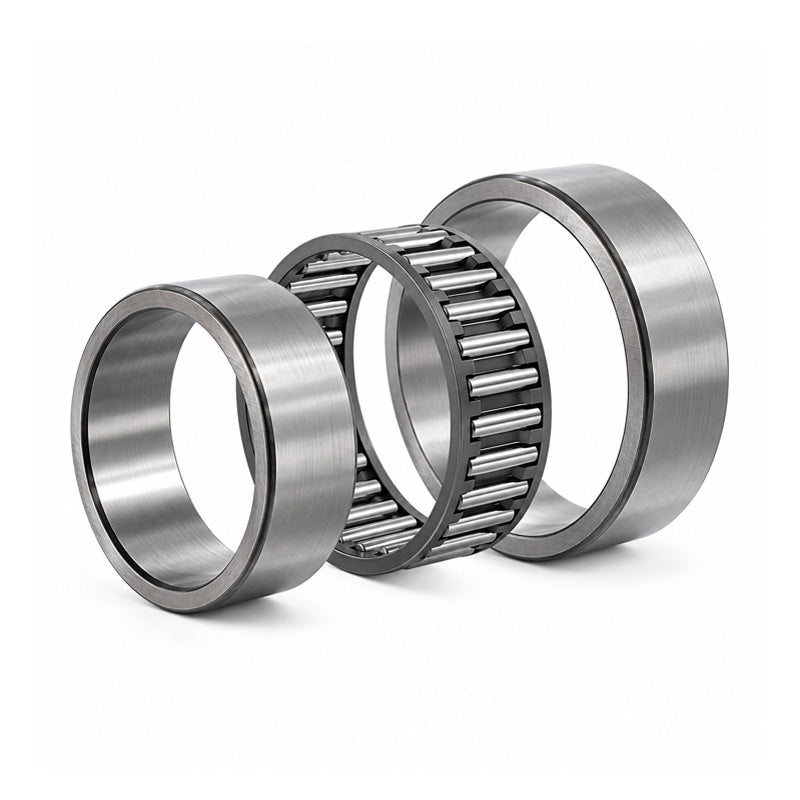

Major Brand NAO15x32x12 Needle Roller Bearings with Machined Rings and an Inner Ring
Major Brand NAO15x32x12 Needle Roller Bearings with Machined Rings and an Inner Ring
Regular price
€31,58
ex VAT
Regular price
Sale price
€31,58
ex VAT
In stock
Price Break
10+
€28,11
19+
€26,53
29+
€26,21
39+
€25,90
49+
€25,58
74+
€25,26
99+
€23,69
199+
€23,37
249+
€23,05
499+
€22,74
999+
€22,11
Couldn't load pickup availability
Description
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 12mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 32mm |
| B | 12mm |
| Dynamic load | 12800 N |
| Static load | 16300 N |
| Fatigue load limit Pu | 1960 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| E | 26mm |
| F | 20mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.5mm |
| da | 25.6mm |
| db | 19.5mm |
| Da | 26.5mm |
| Db | 20.6mm |
| ra max | 0.3mm |
| Weight | 50 g |
