SKU: NAO17x30x13-EU
NAO17x30x13 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
NAO17x30x13 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
Regular price
€17,28
ex VAT
Regular price
Sale price
€17,28
ex VAT
In stock
Price Break
10+
€15,38
19+
€14,52
29+
€14,34
39+
€14,17
49+
€14,00
74+
€13,82
99+
€12,96
199+
€12,79
249+
€12,61
499+
€12,44
999+
€12,10
Couldn't load pickup availability
Description
Description
|
Budget Flange-less Needle Roller: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 13mm

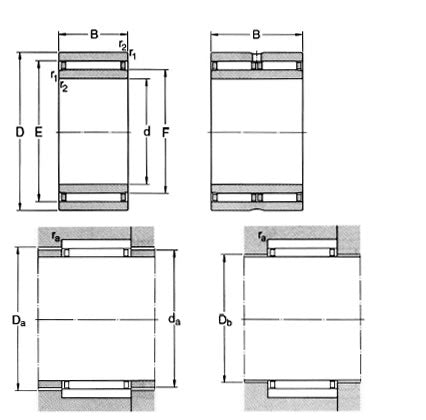

Technical
Technical
| d | 17mm |
|---|---|
| D | 30mm |
| B | 13mm |
| Dynamic load C | 10100 N |
| Static load Co | 16300 N |
| Fatigue load limit Pu | 1860 N |
| Speed in grease | 12000 rpm |
| Speed in oil | 18000 rpm |
| E | 26mm |
| F | 22mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.5mm |
| da | 25.6mm |
| db | 21.5mm |
| Da | 26.3mm |
| Db | 22.4mm |
| ra max | 0.3mm |
| Weight | 42 g |
