SKU: NAO20x37x16-MB

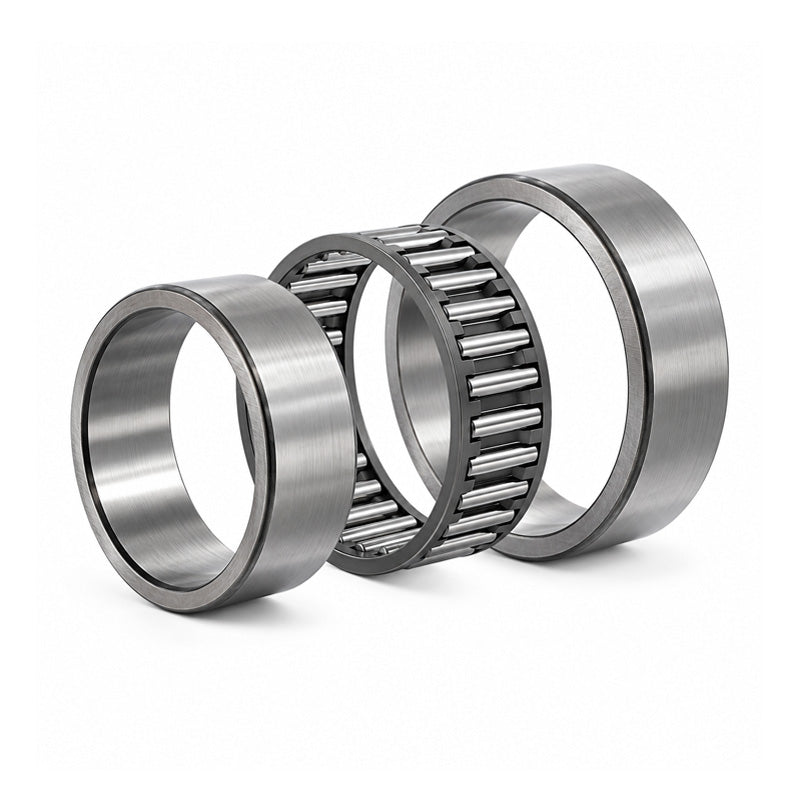

Major Brand NAO20x37x16 Needle Roller Bearings with Machined Rings and an Inner Ring
Major Brand NAO20x37x16 Needle Roller Bearings with Machined Rings and an Inner Ring
Regular price
€73,95
ex VAT
Regular price
Sale price
€73,95
ex VAT
In stock
Price Break
10+
€56,12
19+
€52,96
29+
€52,33
39+
€51,70
49+
€51,07
74+
€50,44
99+
€47,29
199+
€46,66
249+
€46,03
499+
€45,40
999+
€44,14
Description
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 37mm
- Width:
- 16mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 37mm |
| B | 16mm |
| Dynamic load | 20100 N |
| Static load | 28000 N |
| Fatigue load limit Pu | 3350 N |
| Speed in grease | 9500 rpm |
| Speed in oil | 15000 rpm |
| E | 32mm |
| F | 25mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.5mm |
| da | 31.4mm |
| db | 24.5mm |
| Da | 32.5mm |
| Db | 25.6mm |
| ra max | 0.3mm |
| Weight | 82 g |
