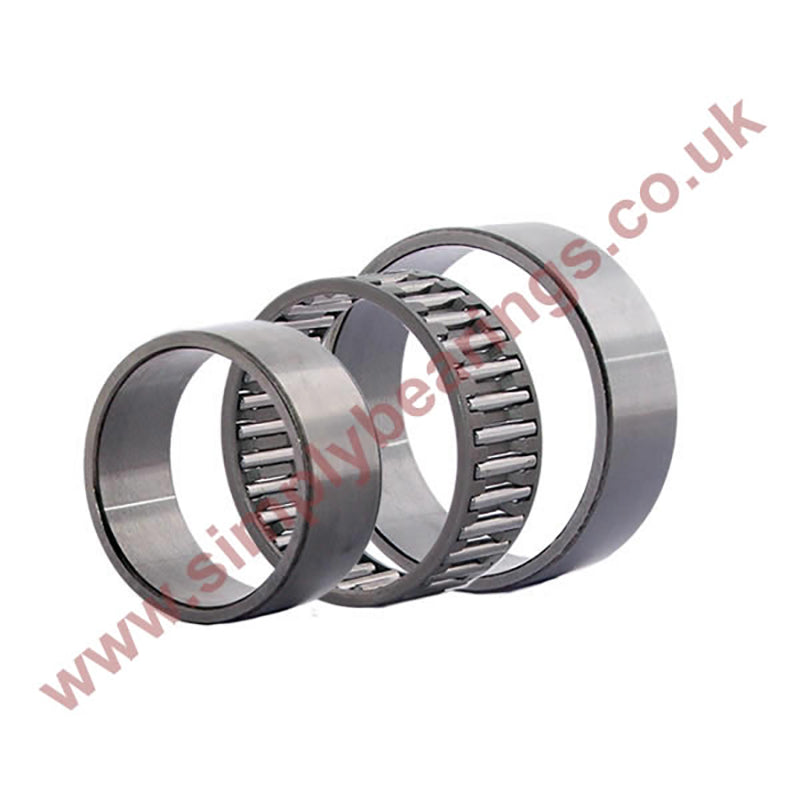

NAO25x42x32 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
NAO25x42x32 Budget Needle Roller Bearing Without Flanges and With Shaft Sleeve
Regular price
€41,95
ex VAT
Regular price
Sale price
€41,95
ex VAT
In stock
Price Break
10+
€31,92
19+
€30,13
29+
€29,77
39+
€29,41
49+
€29,05
74+
€28,70
99+
€26,90
199+
€26,54
249+
€26,19
499+
€25,83
999+
€25,11
Description
Description
|
Budget Flange-less Needle Roller: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 32mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 42mm |
| B | 32mm |
| Dynamic load C | 38000 N |
| Static load Co | 68000 N |
| Fatigue load limit Pu | 8150 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| E | 37mm |
| F | 30mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.8mm |
| da | 36.4mm |
| db | 29.5mm |
| Da | 37.5mm |
| Db | 30.6mm |
| ra max | 0.3mm |
| Weight | 190 g |
