SKU: NAO35x50x17-MB

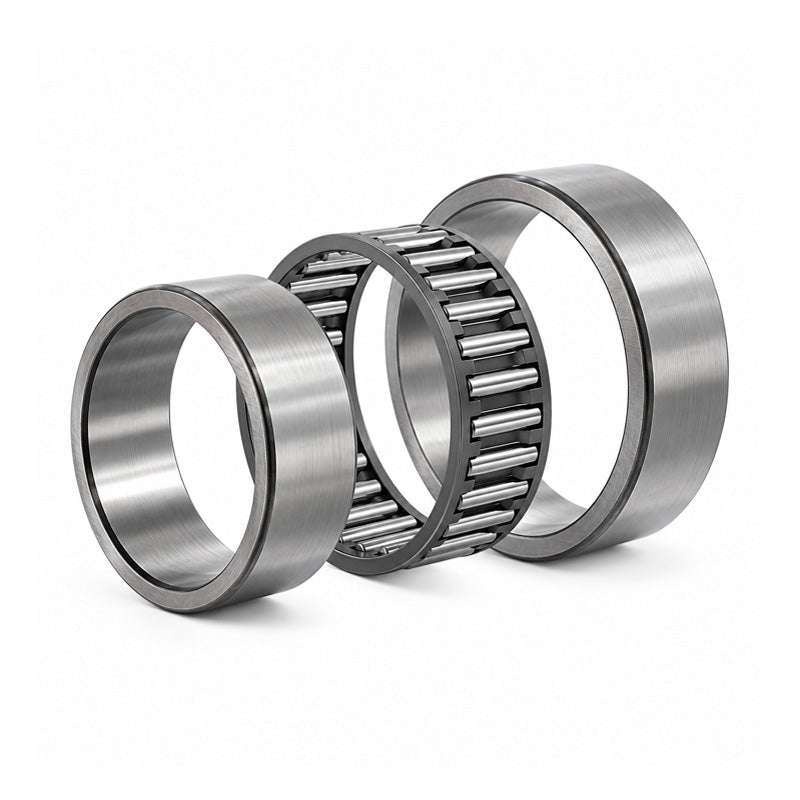

Major Brand NAO35x50x17 Needle Roller Bearings with Machined Rings and an Inner Ring
Major Brand NAO35x50x17 Needle Roller Bearings with Machined Rings and an Inner Ring
Regular price
€34,31
ex VAT
Regular price
Sale price
€34,31
ex VAT
In stock
Price Break
10+
€30,54
19+
€28,82
29+
€28,48
39+
€28,13
49+
€27,79
74+
€27,45
99+
€25,73
199+
€25,39
249+
€25,05
499+
€24,70
999+
€24,02
Couldn't load pickup availability
Description
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 50mm
- Width:
- 17mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 50mm |
| B | 17mm |
| Dynamic load | 20500 N |
| Static load | 41500 N |
| Fatigue load limit Pu | 5000 N |
| Speed in grease | 7000 rpm |
| Speed in oil | 10000 rpm |
| E | 45mm |
| F | 40mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.8mm |
| da | 44.4mm |
| db | 39.5mm |
| Da | 45.5mm |
| Db | 40.6mm |
| ra max | 0.3mm |
| Weight | 110 g |
