SKU: NAO9x22x12TN-MB

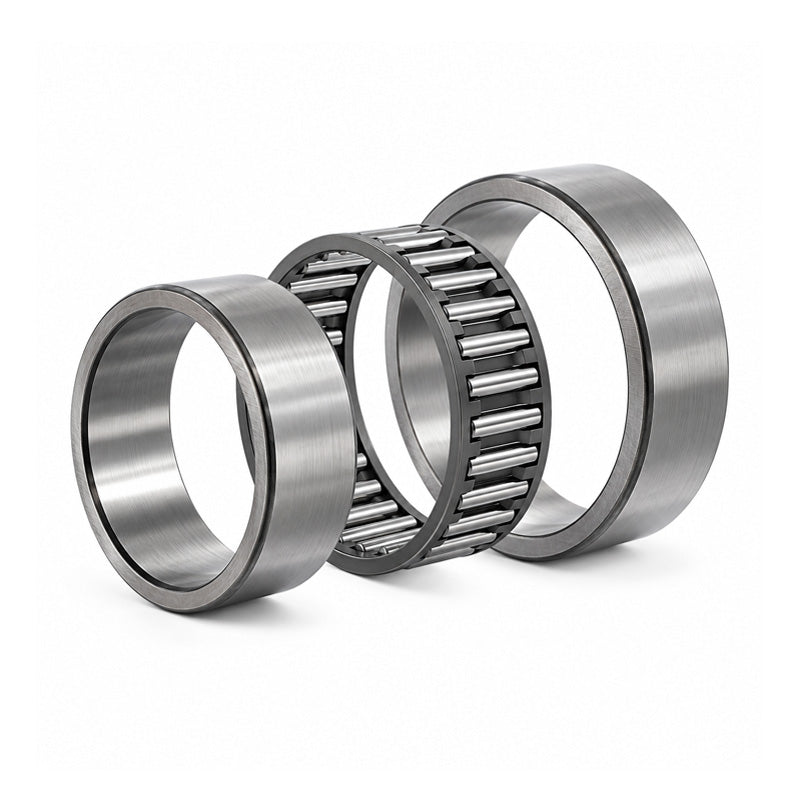

Major Brand NAO9x22x12TN Needle Roller Bearings with Machined Rings and an Inner Ring
Major Brand NAO9x22x12TN Needle Roller Bearings with Machined Rings and an Inner Ring
Regular price
€18,95
ex VAT
Regular price
Sale price
€18,95
ex VAT
In stock
Price Break
10+
€14,01
19+
€13,22
29+
€13,07
39+
€12,91
49+
€12,75
74+
€12,59
99+
€11,81
199+
€11,65
249+
€11,49
499+
€11,34
999+
€11,02
Description
Description
|
Needle Roller Bearings with Machined Rings and an Inner Ring: The flange-less design permits separation of the supplied inner ring and the outer bearing to facilitate ease of mounting. Benefits: Separable, ease of mounting. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 9mm
- Outside Diameter:
- 22mm
- Width:
- 12mm
Technical
Technical
| d | 9mm |
|---|---|
| D | 22mm |
| B | 12mm |
| Dynamic load | 9520 N |
| Static load | 10000 N |
| Fatigue load limit Pu | 1180 N |
| Speed in grease | 17000 rpm |
| Speed in oil | 26000 rpm |
| E | 18mm |
| F | 12mm |
| r1r2 min | 0.3mm |
| S (axial disp) | 0.5mm |
| da | 17.6mm |
| db | 11.7mm |
| Da | 18.3mm |
| Db | 12.3mm |
| ra max | 0.3mm |
| Weight | 24 g |
