SKU: NF.203.C3.MB

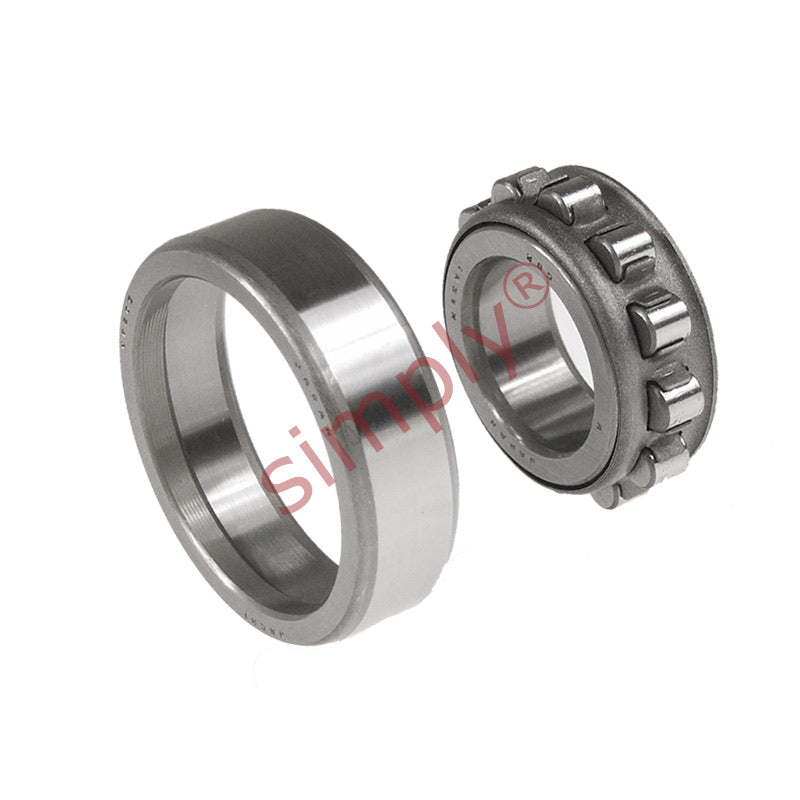

Major Brand NF203C3 Cylindrical Roller Bearing 17x40x12mm
Major Brand NF203C3 Cylindrical Roller Bearing 17x40x12mm
Regular price
€32,95
ex VAT
Regular price
Sale price
€32,95
ex VAT
In stock
Price Break
10+
€24,78
19+
€23,39
29+
€23,11
39+
€22,83
49+
€22,56
74+
€22,28
99+
€20,88
199+
€20,61
249+
€20,33
499+
€20,05
999+
€19,49
Share this product
Description
Description
|
NF and MRJA Series Single Row Cylindrical Roller Bearings: The outer ring of this type has one integral flange / shoulder, the inner raceway has a two flanges / shoulders around which the cage and rollers are assembled. The outer raceway shoulder permits the ease of assembly and limits axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 17mm |
|---|---|
| D | 40mm |
| B | 12mm |
| Ew | 33.9mm |
| Fw | 22.9mm |
| r1 | 0.6mm |
| 0.3mm | Dynamic Load |
| 12600N | Static Load |
| 7950N | Speed in Grease |
| 16000rpm | Speed in Oil |
| 19000rpm | da min |
| 22mm | db min |
| 19mm | db max |
| 22mm | dc |
| 24mm | Da max |
| 35mm | Db min |
| 34mm | Db max |
| 34mm | ra max |
| 0.6mm | ra1 max |
| 0.3mm | Weight |
| 0.082kg | N/A |
