SKU: NF.305.MB

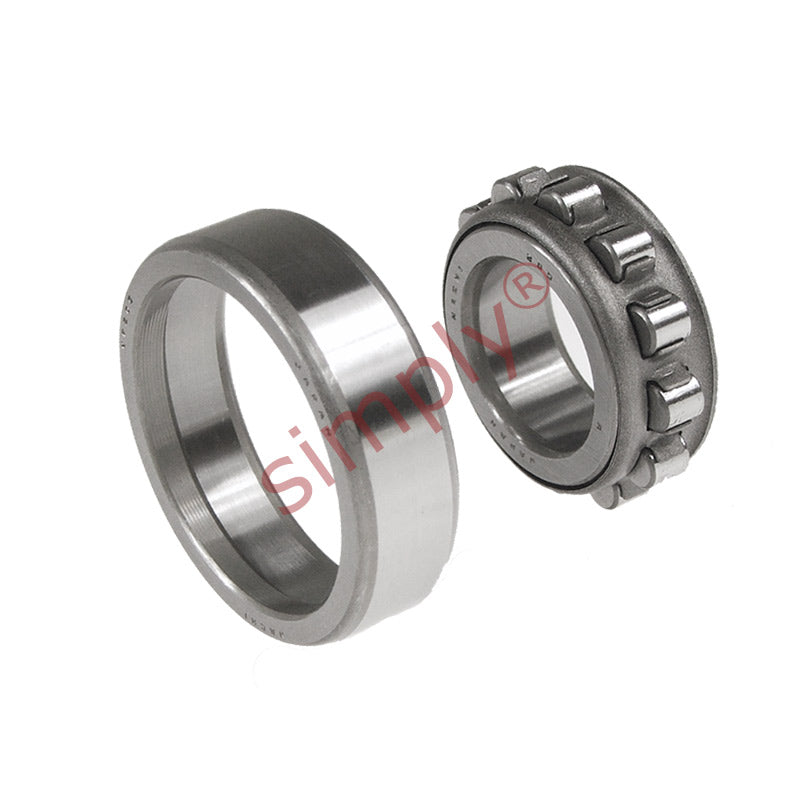

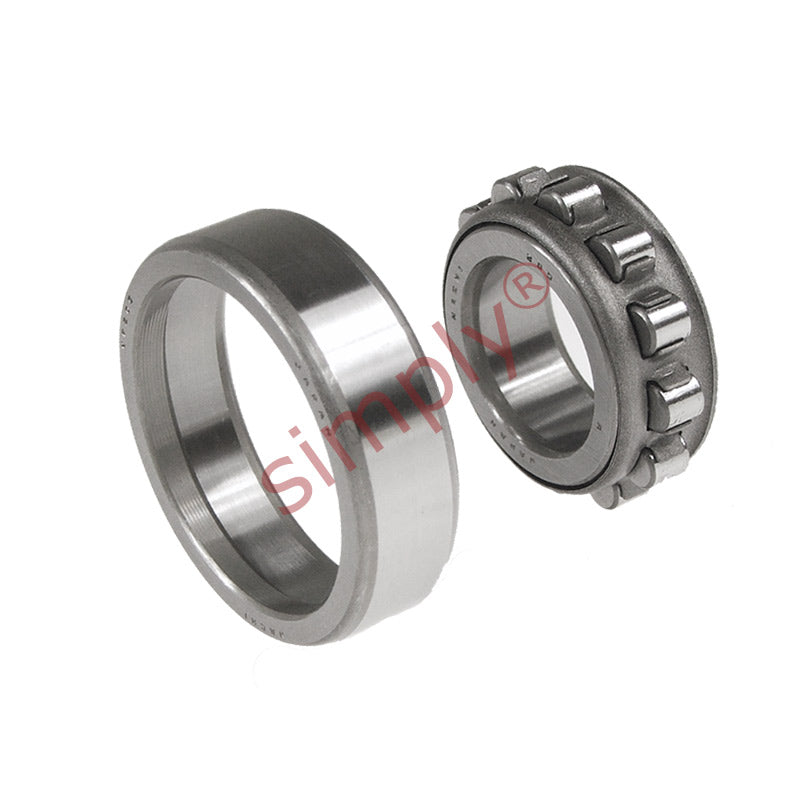

Major Brand NF305 Cylindrical Roller Bearing 25x62x17mm
Major Brand NF305 Cylindrical Roller Bearing 25x62x17mm
Regular price
€54,95
ex VAT
Regular price
Sale price
€54,95
ex VAT
In stock
Price Break
10+
€41,18
19+
€38,86
29+
€38,40
39+
€37,94
49+
€37,48
74+
€37,01
99+
€34,70
199+
€34,24
249+
€33,78
499+
€33,31
999+
€32,39
Share this product
Description
Description
|
NF and MRJA Series Single Row Cylindrical Roller Bearings: The outer ring of this type has one integral flange / shoulder, the inner raceway has a two flanges / shoulders around which the cage and rollers are assembled. The outer raceway shoulder permits the ease of assembly and limits axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 17mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| B | 17mm |
| Ew | 53mm |
| Fw | 35mm |
| r1 | 1.1mm |
| 1.1mm | Dynamic Load |
| 29200N | Static Load |
| 25200N | Speed in Grease |
| 9500rpm | Speed in Oil |
| 12000rpm | da min |
| 32mm | db min |
| 32mm | db max |
| 33mm | dc |
| 37mm | Da max |
| 55mm | Db min |
| 55mm | Db max |
| 55mm | ra max |
| 1mm | ra1 max |
| 1mm | Weight |
| 0.238kg | N/A |
