SKU: NJ202ECP/C3-SKF

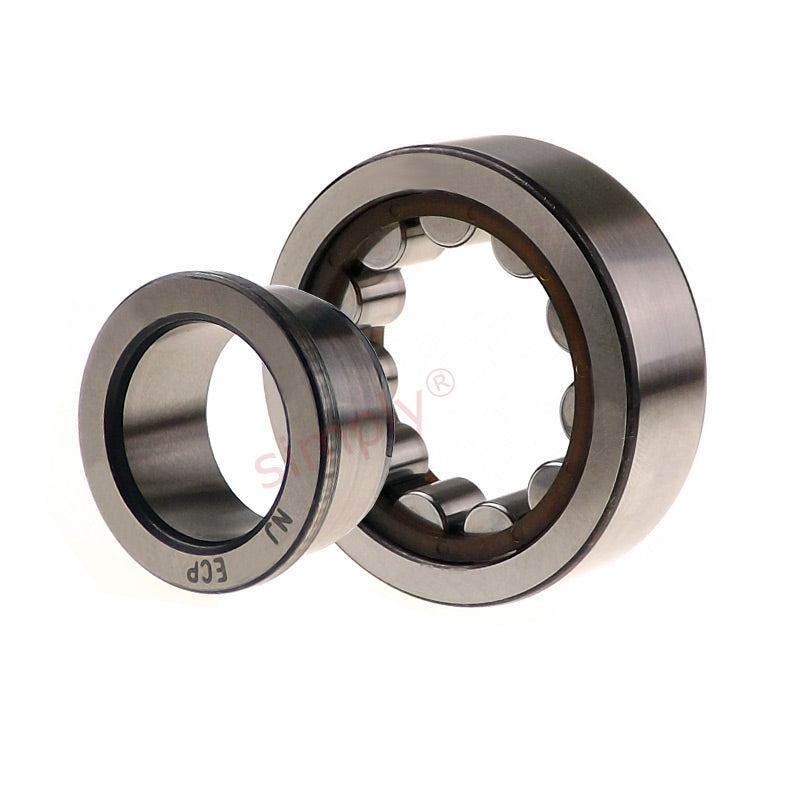

SKF NJ202ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 15x35x11mm
SKF NJ202ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 15x35x11mm
Regular price
€31,95
ex VAT
Regular price
Sale price
€31,95
ex VAT
In stock
Price Break
10+
€23,86
19+
€22,52
29+
€22,25
39+
€21,98
49+
€21,72
74+
€21,45
99+
€20,11
199+
€19,84
249+
€19,57
499+
€19,30
999+
€18,77
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 15mm |
|---|---|
| D | 35mm |
| B | 11mm |
| Dynamic load C | 12.5 kN |
| Static load Co | 10.2 kN |
| Fatigue load limit Pu | 1.22 kN |
| Reference speed | 22000 rpm |
| Limiting speed | 26000 rpm |
| Weight | 0.048 kg |
| d1 | 21.9mm |
| D1 | 27.9mm |
| F,E | 19.3mm |
| r1r2 min | 0.6mm |
| r3r4 min | 0.3mm |
| S | 1mm |
| da min | 18.5mm |
| da max | 18.5mm |
| db | 23mm |
| Da max | 30.8mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| kr | 0.15 |
