SKU: NJ213ECP/C3-SKF

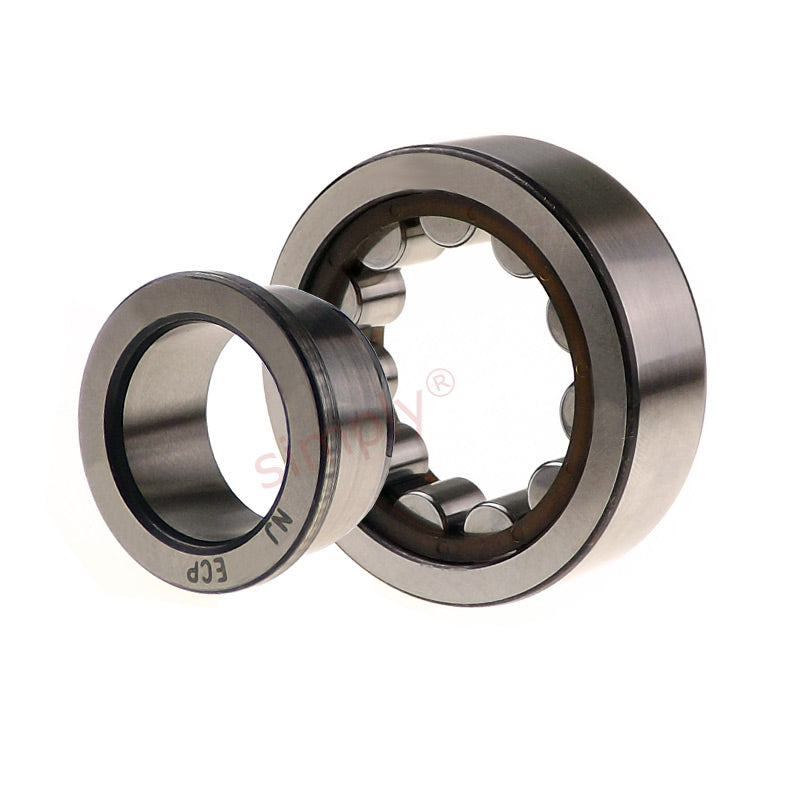

SKF NJ213ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 65x120x23mm
SKF NJ213ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 65x120x23mm
Regular price
€105,95
ex VAT
Regular price
Sale price
€105,95
ex VAT
In stock
Price Break
10+
€80,08
19+
€75,58
29+
€74,68
39+
€73,78
49+
€72,88
74+
€71,98
99+
€67,48
199+
€66,58
249+
€65,68
499+
€64,78
999+
€62,98
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 65mm |
|---|---|
| D | 120mm |
| B | 23mm |
| Dynamic load C | 122 kN |
| Static load Co | 118 kN |
| Fatigue load limit Pu | 15.6 kN |
| Reference speed | 6300 rpm |
| Limiting speed | 6700 rpm |
| Weight | 1.07 kg |
| Alt cage | J.M.ML |
| d1 | 84.4mm |
| D1 | 104mm |
| F,E | 78.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| S | 1.4mm |
| da min | 74mm |
| da max | 76mm |
| db | 87mm |
| Da max | 111mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
| Angle ring | HJ213EC |
| Angle ring weight | 0.12 kg |
| B1 | 6mm |
| B2 | 10mm |
