SKU: NJ2206-EU

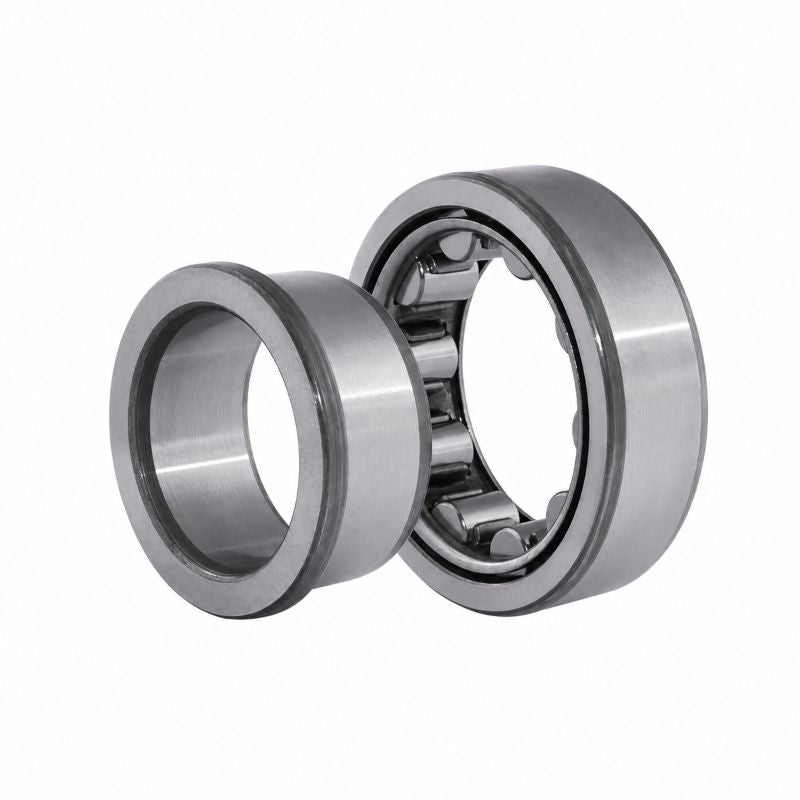

NJ2206 Budget Single Row Cylindrical Roller Bearing 30x62x20mm
NJ2206 Budget Single Row Cylindrical Roller Bearing 30x62x20mm
Regular price
€31,95
ex VAT
Regular price
Sale price
€31,95
ex VAT
In stock
Price Break
10+
€24,17
19+
€22,81
29+
€22,54
39+
€22,27
49+
€22,00
74+
€21,73
99+
€20,37
199+
€20,10
249+
€19,83
499+
€19,56
999+
€19,01
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 20mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B | 20mm |
| Dynamic load C | 55 kN |
| Static load Co | 49 kN |
| Fatigue load limit Pu | 6.1 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 14000 rpm |
| Weight | 0.26 kg |
| Cage options | J.ML |
| d1 | 41.2mm |
| D1 | 52.5mm |
| F, E | 37.5mm |
| r1r2 min | 1mm |
| r3r4 min | 0.6mm |
| s | 1.8mm |
| da min | 34mm |
| da max | 36mm |
| db min | 43mm |
| Da max | 57mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.2 |
