SKU: NJ2210ECP-SKF

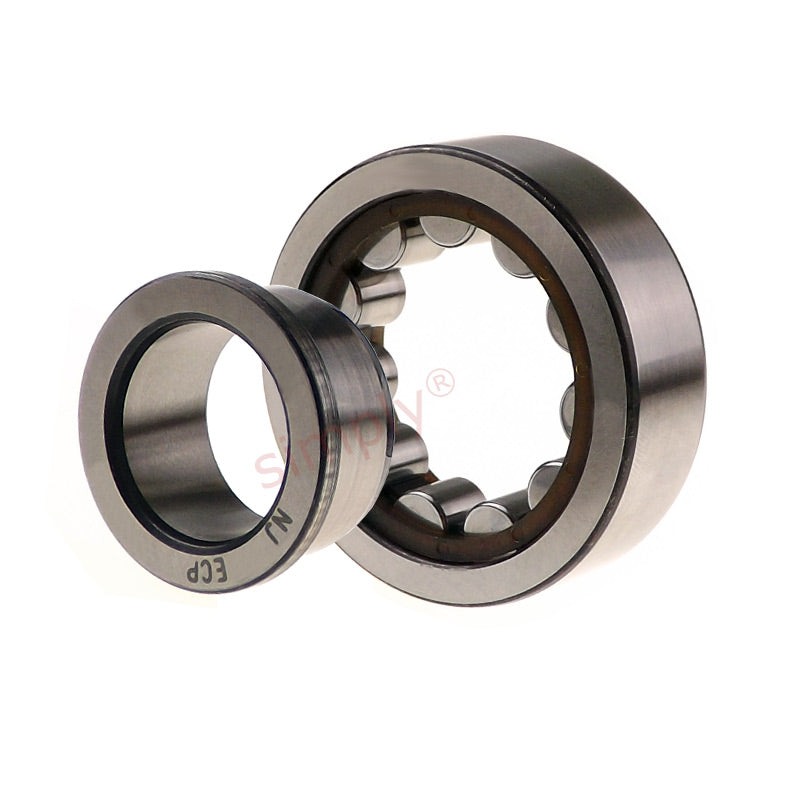

SKF NJ2210ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 50x90x23mm
SKF NJ2210ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 50x90x23mm
Regular price
€81,95
ex VAT
Regular price
Sale price
€81,95
ex VAT
In stock
Price Break
10+
€62,40
19+
€58,89
29+
€58,19
39+
€57,49
49+
€56,79
74+
€56,09
99+
€52,58
199+
€51,88
249+
€51,18
499+
€50,48
999+
€49,08
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| B | 23mm |
| Dynamic load C | 90 kN |
| Static load Co | 88 kN |
| Fatigue load limit Pu | 11.4 kN |
| Reference speed | 8500 rpm |
| Limiting speed | 9000 rpm |
| Weight | 0.57 kg |
| Alt cage | J.M.ML |
| d1 | 64mm |
| D1 | 78mm |
| F,E | 59.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| S | 1.5mm |
| da min | 57mm |
| da max | 57mm |
| db | 66mm |
| Da max | 83mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.2 |
