SKU: NJ2213ECP-SKF

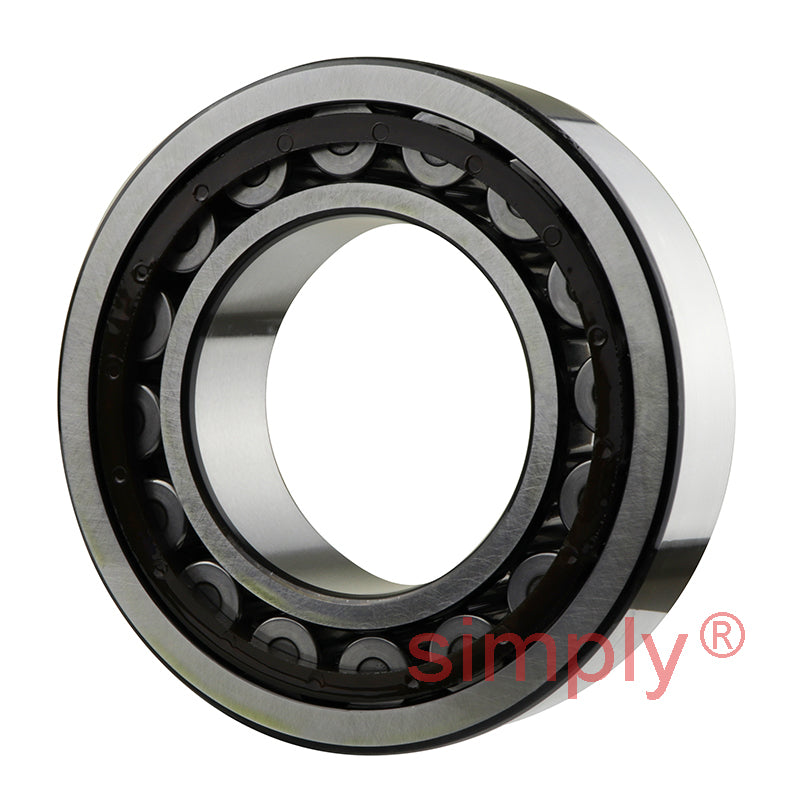

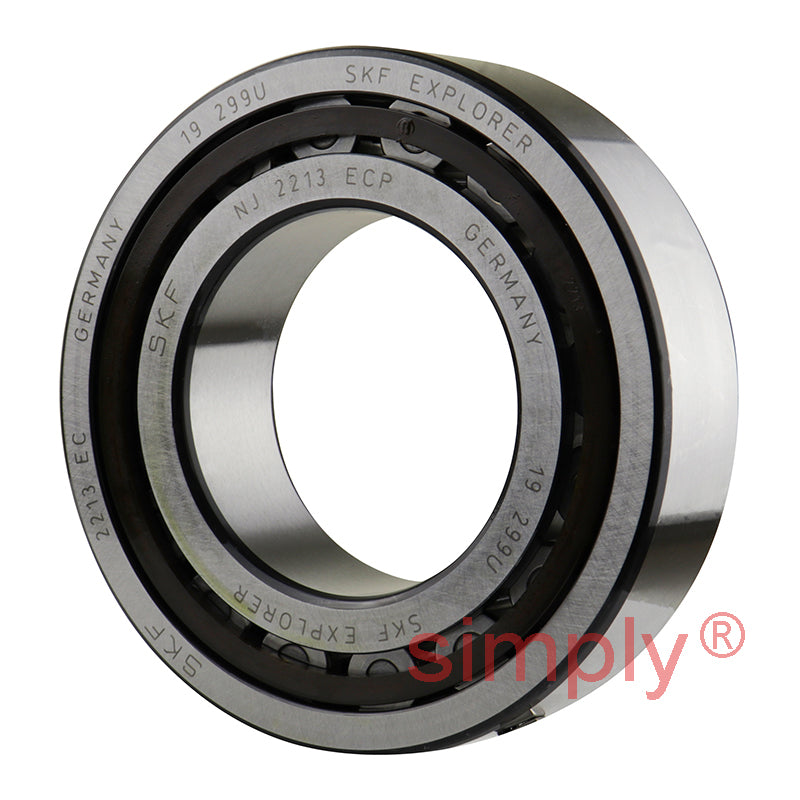

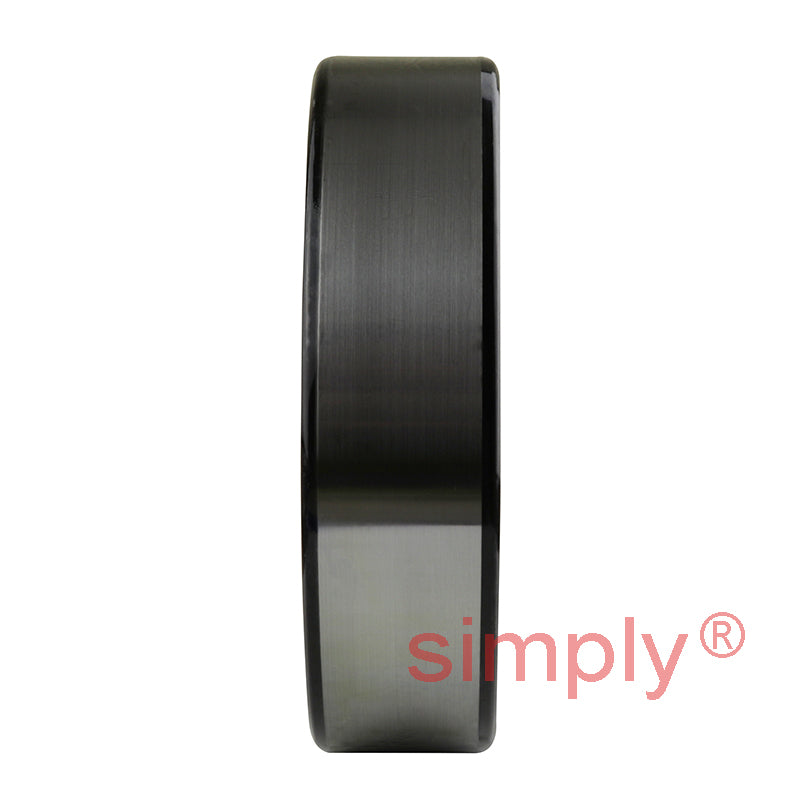

SKF NJ2213ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 65x120x31mm
SKF NJ2213ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 65x120x31mm
Regular price
€125,95
ex VAT
Regular price
Sale price
€125,95
ex VAT
In stock
Price Break
10+
€95,81
19+
€90,43
29+
€89,35
39+
€88,28
49+
€87,20
74+
€86,12
99+
€80,74
199+
€79,66
249+
€78,59
499+
€77,51
999+
€75,36
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 31mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 120mm |
| B | 31mm |
| Dynamic load C | 170 kN |
| Static load Co | 180 kN |
| Fatigue load limit Pu | 24 kN |
| Reference speed | 6300 rpm |
| Limiting speed | 6700 rpm |
| Weight | 1.45 kg |
| Alt cage | J |
| d1 | 84.4mm |
| D1 | 104mm |
| F,E | 78.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| S | 1.9mm |
| da min | 74mm |
| da max | 76mm |
| db | 87mm |
| Da max | 111mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.2 |
| Angle ring | HJ2213EC |
| Angle Ring Weight | 0.13 kg |
| B1 | 6mm |
| B2 | 10.5mm |
