SKU: NJ2217ECP-SKF

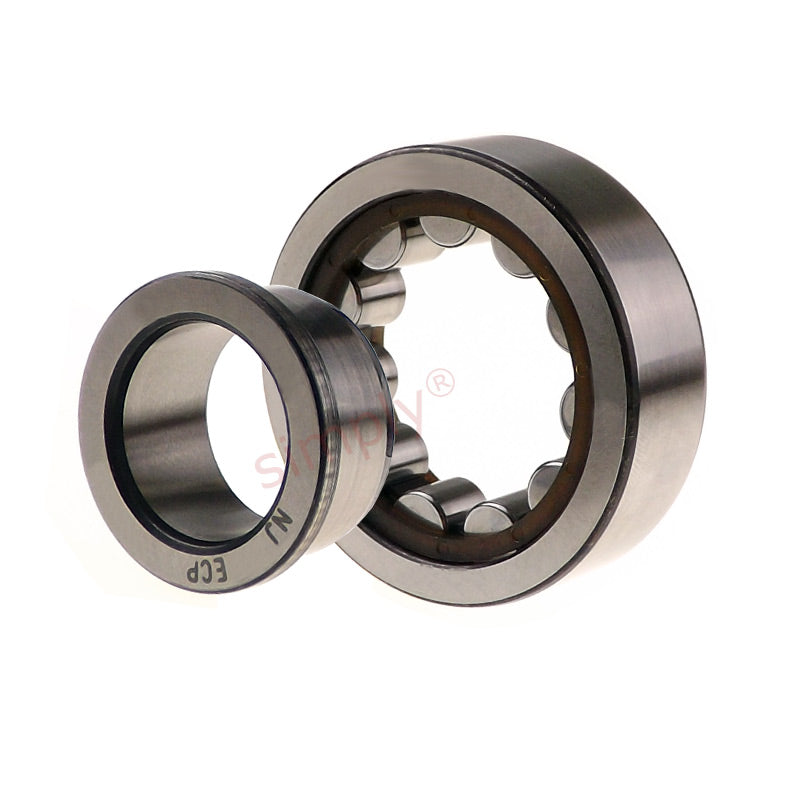

SKF NJ2217ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 85x150x36mm
SKF NJ2217ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 85x150x36mm
Regular price
€222,95
ex VAT
Regular price
Sale price
€222,95
ex VAT
In stock
Price Break
10+
€169,51
19+
€159,99
29+
€158,08
39+
€156,18
49+
€154,28
74+
€152,37
99+
€142,85
199+
€140,94
249+
€139,04
499+
€137,13
999+
€133,32
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 150mm
- Width:
- 36mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 85mm |
|---|---|
| D | 150mm |
| B | 36mm |
| Dynamic load C | 250 kN |
| Static load Co | 280 kN |
| Fatigue load limit Pu | 34.5 kN |
| Reference speed | 4800 rpm |
| Limiting speed | 5300 rpm |
| Weight | 2.55 kg |
| Alt cage | J.M.ML |
| d1 | 107mm |
| D1 | 131mm |
| F,E | 100.5mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| S | 2mm |
| da min | 96mm |
| da max | 98mm |
| db | 110mm |
| Da max | 139mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.2 |
