SKU: NJ2219ECP-SKF

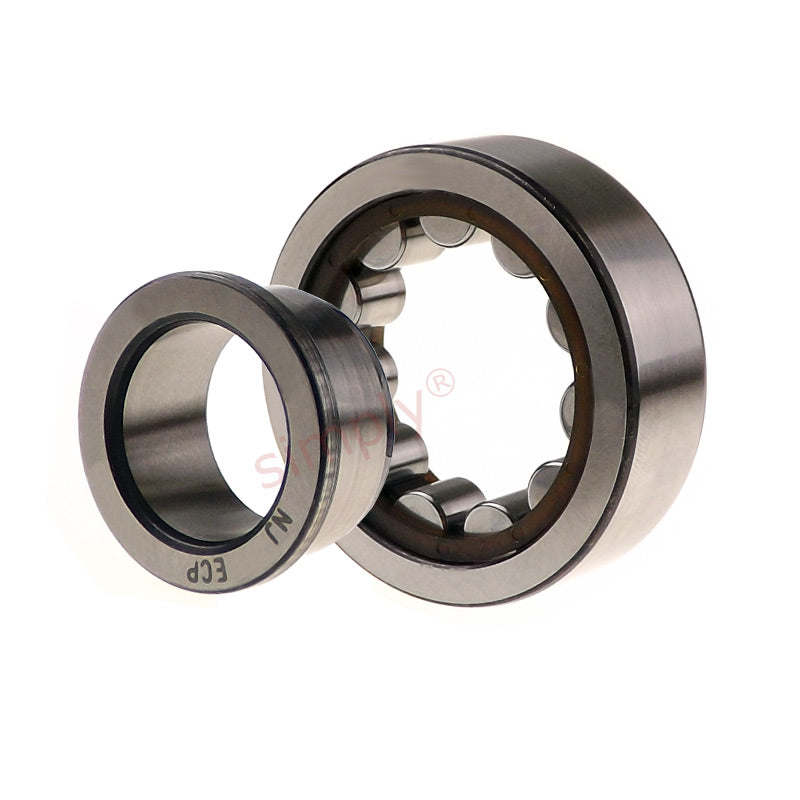

SKF NJ2219ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 95x170x43mm
SKF NJ2219ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 95x170x43mm
Regular price
€329,95
ex VAT
Regular price
Sale price
€329,95
ex VAT
In stock
Price Break
10+
€250,58
19+
€236,51
29+
€233,69
39+
€230,88
49+
€228,06
74+
€225,24
99+
€211,17
199+
€208,35
249+
€205,54
499+
€202,72
999+
€197,09
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 170mm
- Width:
- 43mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 95mm |
|---|---|
| D | 170mm |
| B | 43mm |
| Dynamic load C | 325 kN |
| Static load Co | 375 kN |
| Fatigue load limit Pu | 45.5 kN |
| Reference speed | 4300 rpm |
| Limiting speed | 4800 rpm |
| Weight | 3.95 kg |
| Alt cage | J.M |
| d1 | 120mm |
| D1 | 149mm |
| F,E | 112.5mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 3mm |
| da min | 107mm |
| da max | 110mm |
| db | 123mm |
| Da max | 158mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.2 |
