SKU: NJ2309ECP/C4-SKF

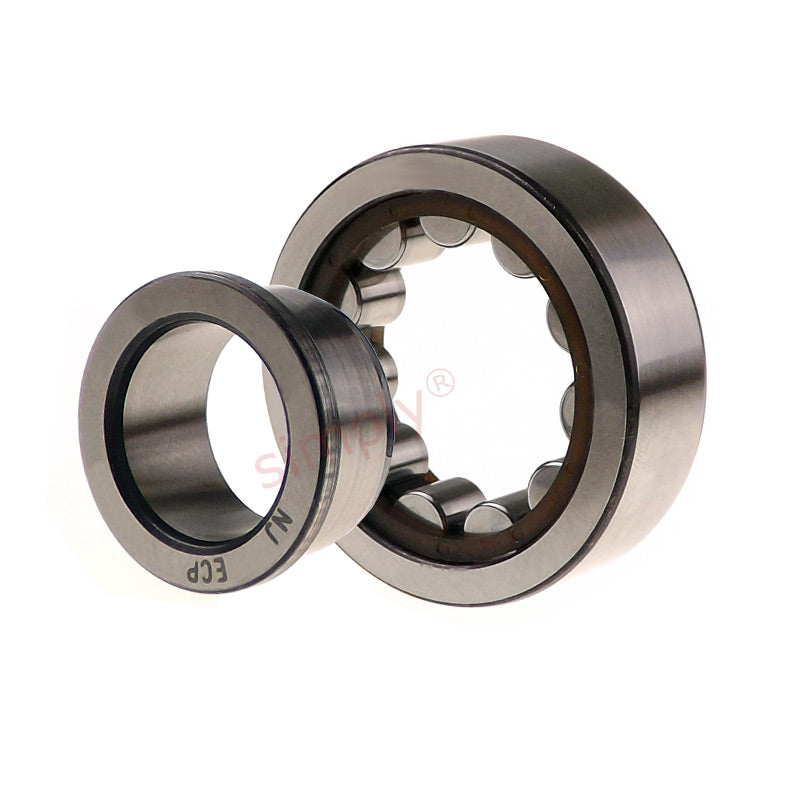

SKF NJ2309ECPC4 Single Row Cylindrical Roller Bearing with Polyamide Cage 45x100x36mm
SKF NJ2309ECPC4 Single Row Cylindrical Roller Bearing with Polyamide Cage 45x100x36mm
Regular price
€121,95
ex VAT
Regular price
Sale price
€121,95
ex VAT
In stock
Price Break
10+
€92,37
19+
€87,18
29+
€86,14
39+
€85,10
49+
€84,06
74+
€83,03
99+
€77,84
199+
€76,80
249+
€75,76
499+
€74,72
999+
€72,65
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 36mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 36mm |
| Dynamic load C | 160 kN |
| Static load Co | 153 kN |
| Fatigue load limit Pu | 20 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 8500 rpm |
| Weight | 1.33 kg |
| Alt cage | ML |
| d1 | 64.4mm |
| D1 | 83.8mm |
| F,E | 58.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| S | 3.2mm |
| da min | 54mm |
| da max | 56mm |
| db | 67mm |
| Da max | 91mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.25 |
