SKU: NJ303ECP-SKF

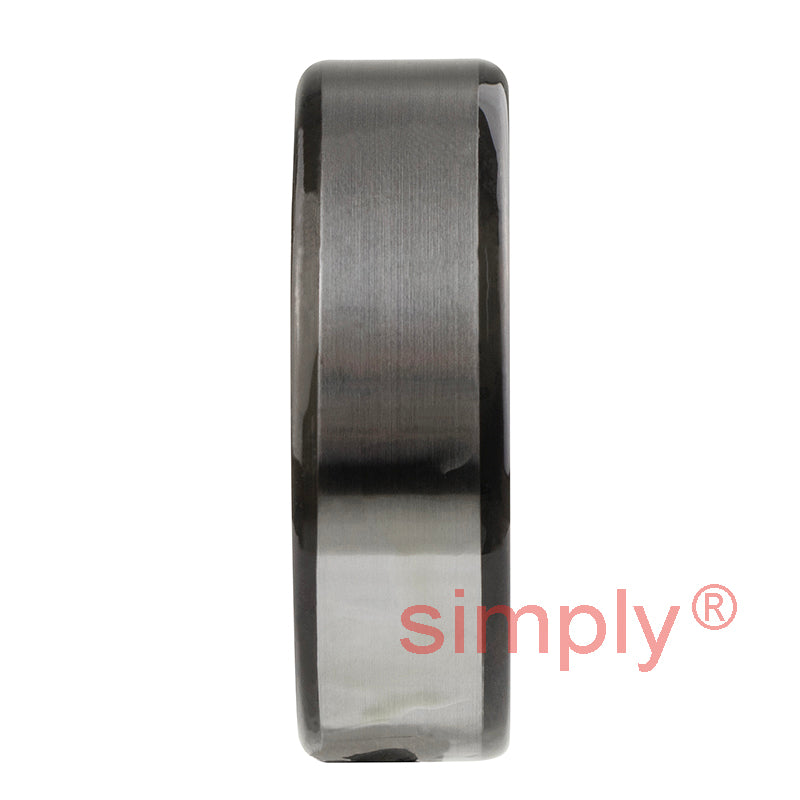

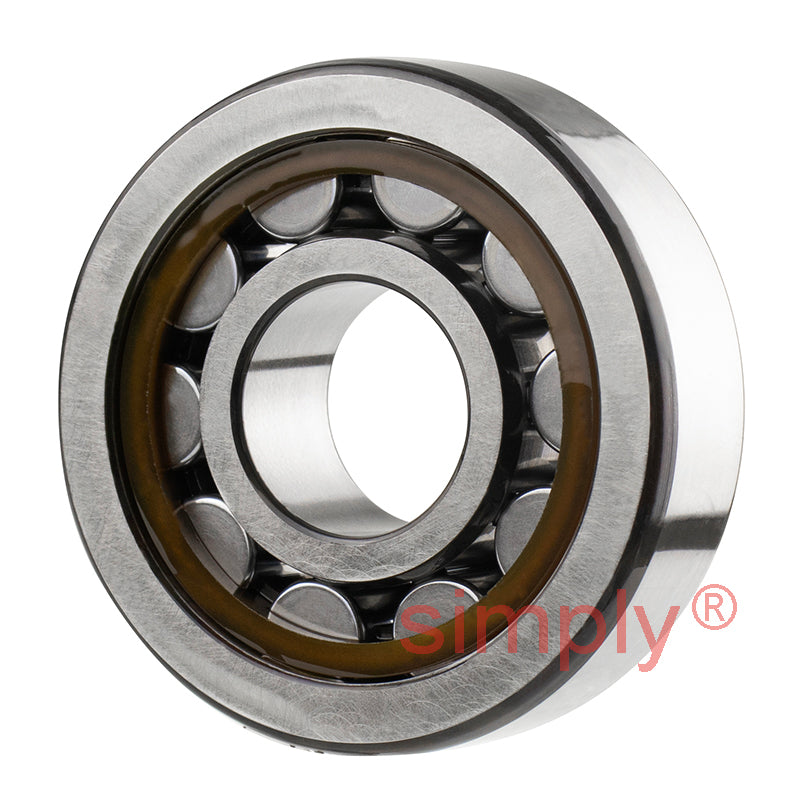

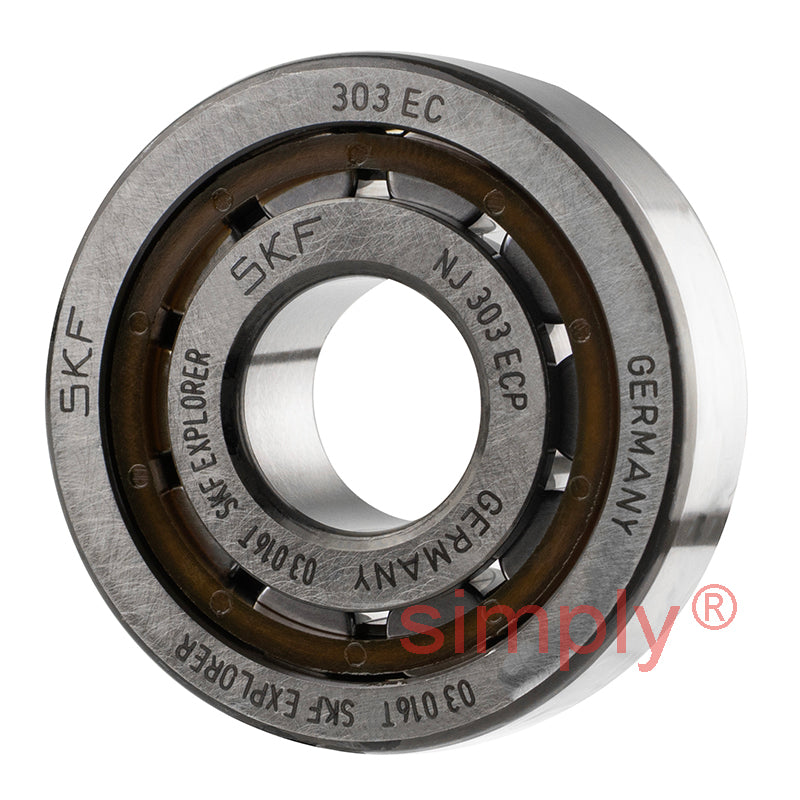

SKF NJ303ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 17x47x14mm
SKF NJ303ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 17x47x14mm
Regular price
€48,95
ex VAT
Regular price
Sale price
€48,95
ex VAT
In stock
Price Break
10+
€36,86
19+
€34,79
29+
€34,37
39+
€33,96
49+
€33,54
74+
€33,13
99+
€31,06
199+
€30,64
249+
€30,23
499+
€29,82
999+
€28,99
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 47mm |
| B | 14mm |
| Dynamic load C | 24.6 kN |
| Static load Co | 20.4 kN |
| Fatigue load limit Pu | 2.55 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 20000 rpm |
| Weight | 0.12 kg |
| d1 | 27.7mm |
| D1 | 37mm |
| F,E | 24.2mm |
| r1r2 min | 1mm |
| r3r4 min | 0.6mm |
| S | 1mm |
| da min | 22.6mm |
| da max | 23mm |
| db | 29mm |
| Da max | 41.4mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.15 |
