SKU: NJ309-CDX

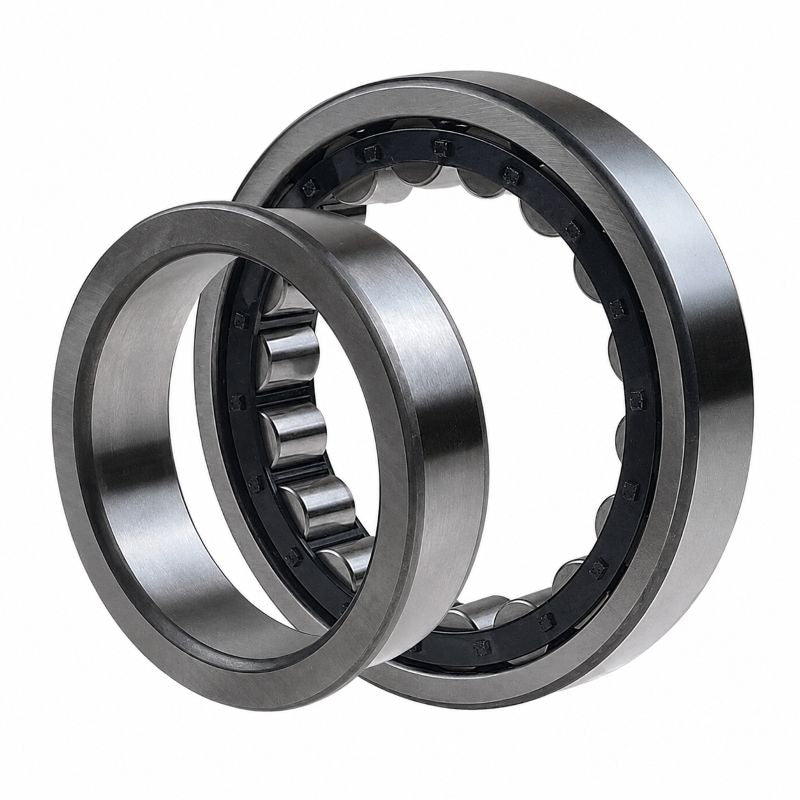

Codex NJ309 Single Row Cylindrical Roller Bearing 45x100x25mm
Codex NJ309 Single Row Cylindrical Roller Bearing 45x100x25mm
Regular price
€66,95
ex VAT
Regular price
Sale price
€66,95
ex VAT
In stock
Price Break
10+
€50,44
19+
€47,61
29+
€47,04
39+
€46,47
49+
€45,91
74+
€45,34
99+
€42,51
199+
€41,94
249+
€41,37
499+
€40,81
999+
€39,67
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load C | 112 kN |
| Static load Co | 100 kN |
| Fatigue load limit Pu | 12.9 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 8500 rpm |
| Weight | 0.92 kg |
| Cage options | J.M.ML |
| d1 | 64.4mm |
| D1 | 83.8mm |
| F, E | 58.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| s | 1.7mm |
| da min | 54mm |
| da max | 56mm |
| db min | 67mm |
| Da max | 91mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
| Angle ring | HJ309EC |
| Angle ring weight | 0.11kg |
| B1 | 7mm |
| B2 | 11.5mm |
