SKU: NJ312ECP/C3-SKF

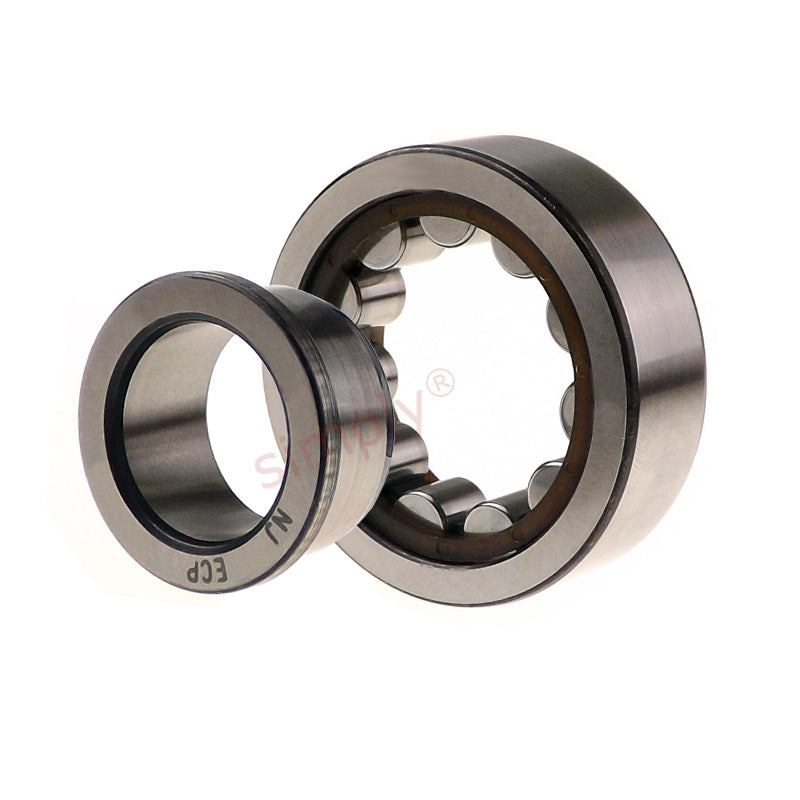

SKF NJ312ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 60x130x31mm
SKF NJ312ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 60x130x31mm
Regular price
€149,95
ex VAT
Regular price
Sale price
€149,95
ex VAT
In stock
Price Break
10+
€114,02
19+
€107,61
29+
€106,33
39+
€105,05
49+
€103,77
74+
€102,49
99+
€96,08
199+
€94,80
249+
€93,52
499+
€92,24
999+
€89,68
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 130mm
- Width:
- 31mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 60mm |
|---|---|
| D | 130mm |
| B | 31mm |
| Dynamic load C | 173 kN |
| Static load Co | 160 kN |
| Fatigue load limit Pu | 20.8 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 6700 rpm |
| Weight | 1.83 kg |
| Alt cage | J.M.ML |
| d1 | 84.3mm |
| D1 | 110mm |
| F,E | 77mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 2.1mm |
| da min | 72mm |
| da max | 74mm |
| db | 87mm |
| Da max | 118mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ312EC |
| Angle ring weight | 0.22 kg |
| B1 | 9mm |
| B2 | 14.5mm |
