SKU: NJ314-CDX

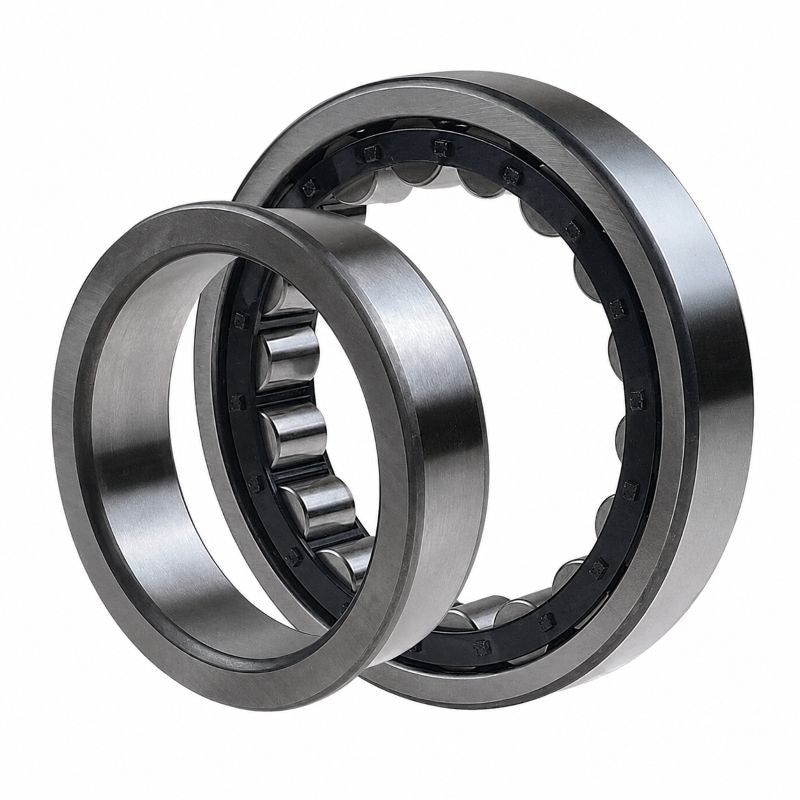

Codex NJ314 Single Row Cylindrical Roller Bearing 70x150x35mm
Codex NJ314 Single Row Cylindrical Roller Bearing 70x150x35mm
Regular price
€155,95
ex VAT
Regular price
Sale price
€155,95
ex VAT
In stock
Price Break
10+
€118,69
19+
€112,02
29+
€110,69
39+
€109,35
49+
€108,02
74+
€106,69
99+
€100,02
199+
€98,69
249+
€97,35
499+
€96,02
999+
€93,35
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| B | 35mm |
| Dynamic load C | 236 kN |
| Static load Co | 228 kN |
| Fatigue load limit Pu | 29 kN |
| Reference speed | 4800 rpm |
| Limiting speed | 5600 rpm |
| Weight | 2.9 kg |
| Cage options | J.M.ML |
| d1 | 97.3mm |
| D1 | 127mm |
| F, E | 89mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| s | 1.8mm |
| da min | 82mm |
| da max | 86mm |
| db min | 100mm |
| Da max | 138mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ314EC |
| Angle ring weight | 0.32kg |
| B1 | 10mm |
| B2 | 15.5mm |
